SQE SmartFlo™ System
|
This system is a complete package designed to provide constant water pressure in any home, irrigation system or small commercial application. It is comprised of systems based around an SQE pump (½, ¾, 1, and 1.5HP) and CU301 Control Unit.
This system is a complete package designed to provide constant water pressure in any home, irrigation system or small commercial application. It is comprised of systems based around an SQE pump (½, ¾, 1, and 1.5HP) and CU301 Control Unit.
The SmartFlo™ SQE/CU301 is used for 3” or larger wells with ½ – 1.5 HP pumps

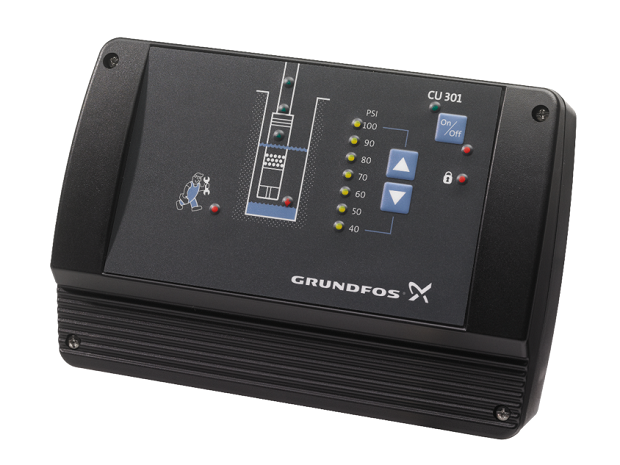

The CU 301 is a control and communication unit developed for SQE well pumps used in constant-pressure applications.
The CU 301 control unit provides:
Full control of the SQE pump.
Two-way communication with the pump.
Simple pressure adjustments.
Alarm indication (LED) when service is needed.
Configuration with R100 remote control.
Configuration with Grundfos GO Remote.
The CU 301 communicates with the pump via mainsborne signalling (Power Line Communication), meaning that no extra cables are required between the CU 301 and the pump.
Features & Benefits
CU 301 can detect the following:
No contact to pump
Overvoltage
Under voltage
Speed reduction
Over temperature
Overload
Defective sensor
Other Features include:
Pump running indicator
System pressure setting
System ON/OFF
Button lock indicator
Dry-running indicator
