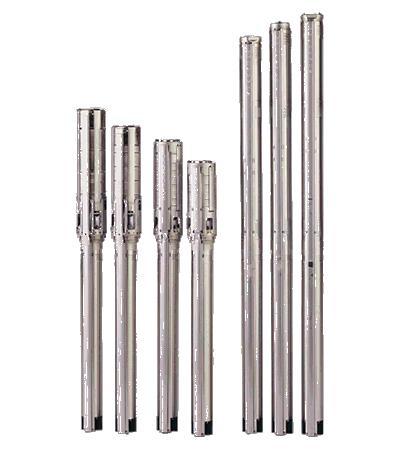

SQFlex Submersible
|
The SQFlex family is an environmentally-friendly water supply system. SQFlex pumps are fitted with a permanent magnet motor which enables the efficient use of energy from a wide range of supply options. The pump system offers the perfect water supply solution in remote areas where water is scarce and the power supply is non-existent or unreliable.
The SQFlex family is an environmentally-friendly water supply system. SQFlex pumps are fitted with a permanent magnet motor which enables the efficient use of energy from a wide range of supply options. The pump system offers the perfect water supply solution in remote areas where water is scarce and the power supply is non-existent or unreliable.
Very flexible as to its energy supply and performance, the SQFlex system can be combined and adapted to any need according to the conditions on the installation site. A battery backup system can store the extra energy generated and take over when the primary energy source is not available.
SQFlex is more than just a pump – it’s a complete system. Thanks to its built-in electronics, the pump is compatible with both DC and AC power supply without requiring an external inverter.
The complete range consists of eleven different pump sizes: Five helical rotor pumps for applications where a high head (820’) is required, and six centrifugal pumps for applications where a greater flow (80 gpm) rate is necessary.
Applications
Being designed for continuous, as well as intermittent operation, the SQFlex system is especially suitable for water supply applications in remote locations, such as:
Villages, schools, hospitals, single-family houses, etc.
Farms
Watering cattle
Irrigation of fields and greenhouses
Game parks and game farms
Watering applications
Conservation areas
Surface water pumping
Floating pump installations for pumping water from ponds and lakes
Features and Benefits
Renewable energy supply: solar panels or wind turbines
Built-in electronics, easy installation
Reliable water supply
Low operating costs
Dry-running protection
Built-in motor protection
High Efficiency
Maximum Power Point Tracking (MPPT)
Wide voltage range: 30-300 VDC, 90-240 VAC (+6/-10%)
Helical rotor pump
Centrifugal pump
Built-in sand shield
