HALO2 LED 18

Description HALO 18 LED Per Meter
Part Number HALO-UL-18
LED Make Epistar
LED configuration 18 LED's spaced evenly over a meter length
Range fed from both sides 36V 86 Meters
Recommended fixing height 2.5 - 3.5 Meters
IP Rating 68
Power Consumption per LED 0.15 Watts
Power Consumption per Meter 3.3 Watts
Colour Rendering Index CRI > 80
Colour temperature 6500 Kelvin
Luminous Efficacy 80.23 Lumens / Watt
Lumens P/M 342
Power factor 0.99
Voltage on lighting VDC 36 VDC
Supply voltage for power controllers VAC 90 -̴ 305 VAC
Light maintenance 20% Drop over 4 years
Lifespan 10 - 15 Years
Warranty Lighting 4 years
Warranty Power Controllers 4 years

Protection
• Short Circuit
• Over Current
• Over Voltage
• Over temperature
HALO2 LED 18

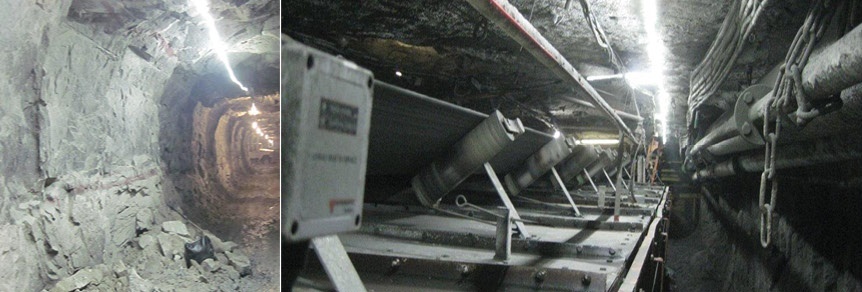

The HALO 18 LED PM is a very good lighting platform for stopes and similar confined space areas, which performs well within its reccommended height range. Its good luminescence, long range and low energy efficiency makes it the top performer and first choice for stope lighting.
