HALO2 LED 24
|
Description HALO 24 LED Per Meter
Part Number HALO-UL-24
LED Make Epistar
LED configuration 24 LED's spaced evenly over a meter length
Range fed from both sides 36V 80 Meters
Recommended fixing height 3 - 4 Meters
IP Rating 68
Power Consumption per LED 0.15 Watts
Power Consumption per Meter 4.4 Watts
Colour Rendering Index CRI > 80
Colour temperature 6500 Kelvin
Luminous Efficacy 80.23 Lumens / Watt
Lumens P/M 456
Power factor 0.99
Voltage on lighting VDC 36 VDC
Supply voltage for power controllers VAC 90 -̴ 305 VAC
Light maintenance 20% Drop over 4 years
Lifespan 10 - 15 Years
Warranty Lighting 4 years
Warranty Power Controllers 4 years
Protection
• Short Circuit
• Over Current
• Over Voltage
• Over temperature

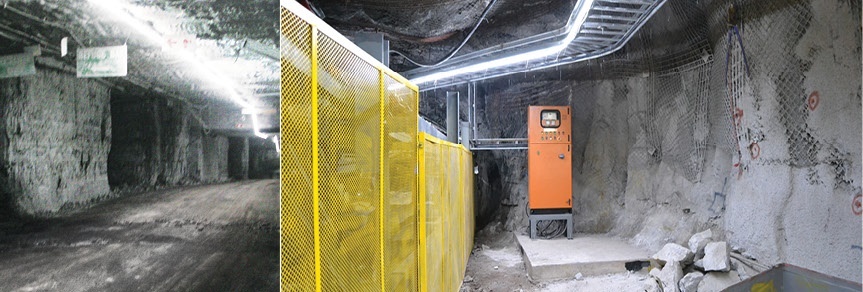

The HALO 24 LED PM is a popular choice for haulages, providing a medium to good lighting platform for most tunnels within it recommended height range. It is also a good solution to run along conveyor belts, adjoining to the 36 LED or 60 LED at the head and tail machine sections.
