HALO2 LED 30
|
Description HALO 30 LED Per Meter
Part Number HALO-UL-30
LED Make Epistar
LED configuration 30 LED's spaced evenly over a meter length
Range fed from both sides 36V 75 Meters
Recommended fixing height 3.5 - 4.5 Meters
IP Rating 68
Power Consumption per LED 0.15 Watts
Power Consumption per Meter 4.4 Watts
Colour Rendering Index CRI > 80
Colour temperature 6500 Kelvin
Luminous Efficacy 80.23 Lumens / Watt
Lumens P/M 570
Power factor 0.99
Voltage on lighting VDC 36 VDC
Supply voltage for power controllers VAC 90 -̴ 305 VAC
Light maintenance 20% Drop over 4 years
Lifespan 10 - 15 Years
Warranty Lighting 4 years
Warranty Power Controllers 4 years
Protection
• Short Circuit
• Over Current
• Over Voltage
• Over temperature

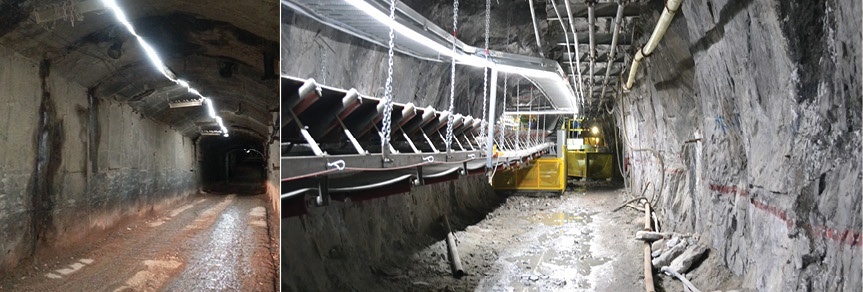

The HALO 30 LED PM is a popular choice for haulages, and is an overall good performer for most tunnels within it recommended height range, it is considered as a medium to high bright option for this application and is a good choice for a haulage and general tunnel lighting solution.
