HALO4 60 LED
|
Description HALO 4-60 LED 1+1
Part Number HALO4-60-1+1
LED Make Epistar
LED configuration 50 CM concentrated LED's followed by 50 CM no LED's
Range fed from both sides 36V 40 Meters
Recommended fixing height 2 - 5 Meters
IP Rating 68
Power Consumption per LED 0.15 Watts
Power Consumption per Meter 4.8 Watts
Colour Rendering Index CRI > 80
Colour temperature 6500 Kelvin
Luminous Efficacy 80.23 Lumens / Watt
Lumens P/M 1140
Power factor 0.99
Voltage on lighting VDC 36 VDC
Supply voltage for power controllers VAC 90 - 305 VAC
Light maintenance 20% Drop over 4 years
Lifespan 10 - 15 Years
Warranty Lighting 4 years
Warranty Power Controllers 4 years
Protection
• Short Circuit
• Over Current
• Over Voltage
• Over temperature

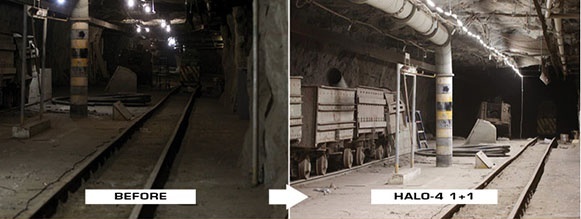

The HALO 60 LED is the most popular choice of the available Halo lighting solutions, which is very versatile and provides daylight conditions underground. It is currently being used for a myriad of solutions ranging from haulages, refuge bays, conveyors,tipping areas, etc. It is also used consistently above ground in numerous applications and its excellent high bright lighting with a 120 degree complete flood makes it a bestseller.
