Xylem

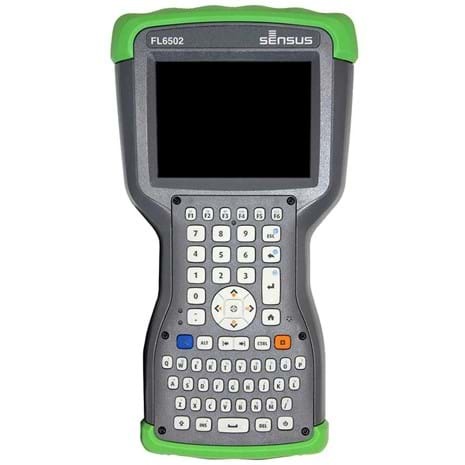

FieldLogic™ Hand-held Device (HHD)
|
The FieldLogic™ Hand-held Device (HHD) is a reliable, flexible electronic device used to collect and store meter readings and program SmartPoint® modules. You can upload pre-programmed route information from our PC-based FieldLogic software using Wi-Fi or the device’s Ethernet-enabled communications/charging stand as an interface. The unit comes with built-in capacity for expanded uses.
The FieldLogic™ Hand-held Device (HHD) is a reliable, flexible electronic device used to collect and store meter readings and program SmartPoint® modules. You can upload pre-programmed route information from our PC-based FieldLogic software using Wi-Fi or the device’s Ethernet-enabled communications/charging stand as an interface. The unit comes with built-in capacity for expanded uses.
The Model FL6501 lets you enter meter data three ways:
Manually, on its built-in keypad
Electronically, with TouchRead® reading devices
Wirelessly, using CommandLink® or filtered multitone (FMT) transmission
AutoGun options include cable-connected and RF (no cable required) styles. The Model FL6502 includes all features of the FL6501, plus it can read Sensus RadioRead® Meter Transceiver Units [MXUs].
Benefits to you
Offers fast, flexible and reliable meter reading
Saves reading time and costs
Eliminates errors in meter reading and SmartPoint programming
Provides a rugged, easy-to-use reading solution
Delivers long battery life
Delivers GPS and camera all in one unit
Offers a clear and easy migration path
PRODUCT FEATURES
Hand-held electronic meter reading, collection and data storage for manual, TouchRead® and Sensus FlexNet® communication network meters
Reads Sensus encoders, Badger ADE® and Neptune Proread™ (ARB® VI)
Well-balanced, easy-to-handle unit
Transflective LCD screen appears brighter in sunlight, uses less power than other displays
Weather-resistant, high-impact, UV-stabilized plastic casing
Audible tone confirms readings or alerts user to faulty or out-of-limit readings
Programmer for Sensus SmartPoints and Sensus encoded and electronic registers
Optional integrated GPS provides accurate position information
Optional five megapixel camera enables capture of high-resolution, full-color images and barcode data
Specifications
10.2” [259.08 mm] (H) x 5.4” [137.16 mm] (W) at display and 3.1” [78.74 mm] (W) at its narrowest point x 2.75” [69.85 mm] deep and 1.6” [40.64 mm] at its shallowest
32.03 oz. (908 grams)
Operates from -22° F to 140° F (-30° to 60° C); Bluetooth® rated to -4° F (-20° C)
Case material molded of high-impact, UV-stabilized plastic
Built-in reader-programmer connection
Docking station holds one HHD and is Bluetooth Class I approved and certified FCC Class B, EN60950
Backlit color LED screen displays meter readouts, route information and system information
Field-replaceable lithium ion batteries, for up to 20 hours of battery life, achieves full charge in 2-4 hours
