Advanced Heat Solutions Inc

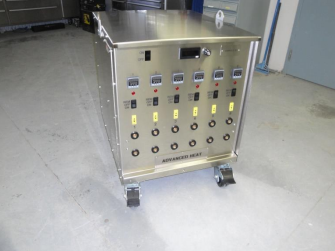

Basic 6 Way Heat Treatment Machine
|
Standard Features are:
• 75 KVA (3 phase) isolated copper wound power transformer: Primary Voltage: 380/415/440/480/575, 50/60 Hz Secondary Voltage 65/85 with thermal trips per phase to prevent overload.
• Six digital temperature controllers (°C or °F) with ramp rate in degrees/hr to set point and capable of performing up to six different processes at a time (1/16 DIN)
• Digital amp meter (0-200 amps) with six-channel selector switch and six current transformers.
• Stainless steel cabinet with swivel wheels (900 lb capacity each with brake) and two lifting lugs.
**Wheels or SS mounting brackets available upon request.
• One 420 CFM cooling fan.
• Duel 110 volt auxiliary plug.
• 100 amp - 3 phase circuit breaker with 120 volt uv release.
• Six 200 amp ALBRIGHT contactors.
• Six 110 volt neon and six two way on off on switches.
• Instrument wiring tinned copper to prevent corrosion and down time.
Standard Features are:
• 75 KVA (3 phase) isolated copper wound power transformer: Primary Voltage: 380/415/440/480/575, 50/60 Hz Secondary Voltage 65/85 with thermal trips per phase to prevent overload.
• Six digital temperature controllers (°C or °F) with ramp rate in degrees/hr to set point and capable of performing up to six different processes at a time (1/16 DIN)
• Digital amp meter (0-200 amps) with six-channel selector switch and six current transformers.
• Stainless steel cabinet with swivel wheels (900 lb capacity each with brake) and two lifting lugs.
**Wheels or SS mounting brackets available upon request.
• One 420 CFM cooling fan.
• Duel 110 volt auxiliary plug.
• 100 amp - 3 phase circuit breaker with 120 volt uv release.
• Six 200 amp ALBRIGHT contactors.
• Six 110 volt neon and six two way on off on switches.
• Instrument wiring tinned copper to prevent corrosion and down time.
Options for the above basic unit
• Amp gauges for each channel
• Built in 12 or 24 point recorder with digital interface
• Programmable controllers
• Fully automatic set point ramp
2 zone or 3 zone control units use’s welding machines for power source. With or without a built in recorder. Uses welding machine as power source.
