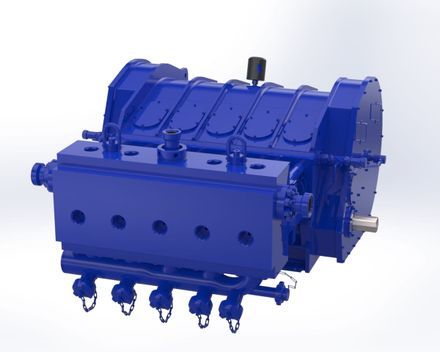

SPM EXL Frac Pump

Engineered to overcome



Increasingly brutal conditions, longer operating hours, less-frequent service intervals and limited field resources—these are the challenges that inspired Weir to engineer the SPM® EXL Frac Pump. With the highest rod-load rating in its class, it systematically addresses the biggest issues confronting operators and manufacturers.



Reliable, rigid construction



Built upon the innovations of the SPM® QEM 3000, the SPM® EXL Power End features solid-steel unibody-nose construction for superior rigidity, distributing the load more evenly through the frame.



Reduced onsite maintenance



SPM® Everbore™ is a hardened steel packing bore which eliminates wash boarding and protects against packing bore wash so there is no need to re-sleeve as often.This benefit allows customers to pump for longer hours with less maintenance in the red zone and reduces significant costs of replacing the fluid end completely due to washboarding and packing bore wash.



Fewer internal welds, fewer weak links



Since most frames crack along weld lines, we dramatically reduced the number of internal groove welds on the pump, moving them to the outside of the frame and welding them robotically, achieving higher and consistent quality. An integrated skid design provides added rigidity and bearing alignment, minimizing vibration and wear on critical components.



Precision-manufactured for maximum gear contact



Because extreme torque stress can damage bearings, bull gears and pinions, we completely re-designed the gear system with modernized manufacturing techniques to maximize surface contact between gear teeth, reducing the risk of stripping damage and extending service life.



Weir Edge™ Service Advantage



As always, Weir Edge™ field technical teams and strategically located service centers are ready to deploy to your site for root-cause analysis and specialized expertise—with quality SPM® EdgeX™ replacement parts and engineered repairs—giving you a service advantage in the world’s most challenging conditions. For more information, visit www.edge.weir



Processes



Well completion
