Yale CPE Electric chain hoist
|
Electric chain hoist with suspension hook or with integrated trolley model CPE
Capacity 1600 - 10000 kg
The CPE series is a range of high quality products for professional applications. They are highly efficient and engineered for a long working life. The hoists are composed of three main component parts which makes service easy and inexpensive.

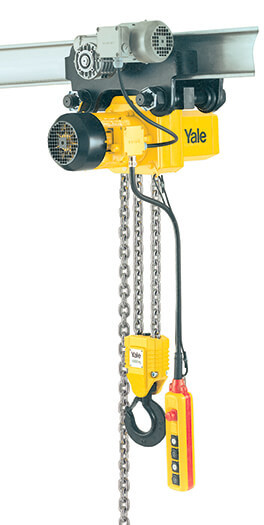

Electric chain hoist with suspension hook or with integrated trolley model CPE
Capacity 1600 - 10000 kg
The CPE series is a range of high quality products for professional applications. They are highly efficient and engineered for a long working life. The hoists are composed of three main component parts which makes service easy and inexpensive.
Twin hoist model CPE 100-2 - Capacity 10000 kg
The model CPE 100-2 consists of two CPE 50-2 units. They are connected by a framework. Hook suspension, geared or electric trolleys are available. Integrated limit switches for highest and lowest hook positions are standard. 42 V low voltage control as standard.
Features and Benefits
Classification 1 Am/M4, except models CPE(F) 20-8, CPE(F) 30-5 and CPE(F) 40-4, with classification 1 Bm/M3. On request, the classification can be modified by derating the capacity and duty cycle.
Direct control or 42 V low voltage control.
2 year warranty (excluding wear parts) as well as a lifetime lubricated gear box.
Motor fitted with a bimetallic thermal protection (useable in connection with low voltage control).
Duty cycle 40 % at one operating speed.
The heavy duty squirrel cage motor has an adjustable spring pressure brake that holds the load secure even in the event of a power failure.
Standard operating voltage: Euro-voltage 400 V, 3-phase, 50 Hz.
Motor protected to IP54, insulation class F.
Encapsulated pendant control protected to IP 65, against ingress of dust and water jets.
The 5-pocket load chain sheave, manufactured from wear resistant case hardening steel, is matched perfectly to the load chain to guarantee smooth and precise chain motion.
The standard, oil bath lubricated planetary gearbox is particularly smooth running.
Drop forged suspension and load hooks are made from non-aging, high tensile steel and fitted with robust safety latches.
The standard case hardened and zinc-plated link chain is matched perfectly to the load chain to guarantee smooth and precise chain motion. All requirements of national and international standards and regulations are fulfilled.
Options
Stainless steel load chain.
Suspension hook rotated 90°.
Flexible chain container.
Other operating voltages.
Limit switches for highest and lowest hook positions(in combination with low voltage control).
Motor with stainless steel brake.
Radio remote control.
Control for synchronized operation of several hoists.
Manual and electric trolleys.
Integrated low headroom trolley.
Festooned cable system or conductor rail system.
Twin hoist model CPE 100-2 options
Stainless steel load chain.
Flexible chain container
Other operating voltages
Motor with stainless steel brake
Radio remote control
Festooned cable system or conductor rail system
