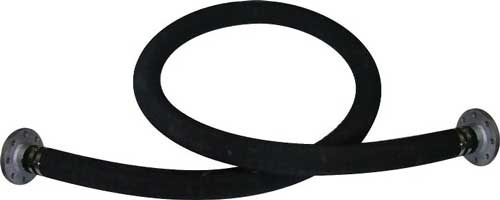

Heavy Duty Hose
|
Inner Tube: Seamless Smooth Rubber Tube Thickness 6.5 / 7.0mm
Reinforcement: Multiple Plies of High Tensile Synthetic Fabric embedded with Double Helical Wire Coils of 12swg.
Fillers: Rubber Filler, Double Layered 1.5mm Thick
Cover: Black Corrugated Rubber Cover Ageing and Weather Resistant 2mm Thick
End Connections: Each End to be Flanged 4” Table ‘D’. (215mm O/d - 4 * Ø18mm Holes on 178mm PCD) Rubber Inner Tube to extend over the raised face. The Nipple Connection made from 100mm I/d Pipe with Wall Thickness of 8mm Min, Extending into the Tube by 220mm.
Bend Radius: Flexible Construction to have a Minimum Bend Radius of 500mms
Standard Lengths: Hose Can be Supplied in Standard Lengths of 5m & 10m with a tolerance of ± 100mm
Standard Weight: 8.4kg per running meter plus flange connections.
Operating Temperature Range: Product Temperature of -20°C to + 82°C Operating Pressure: 7kg/cm2g
Verification Tests: Hydro test: 11kg/cm2g Vacuum Test: 625mm Hg Shore
Hardness: Tube: 50 Deg A (±5) Tube: 60 Deg A (±5)
