HYD-MECH H-14A

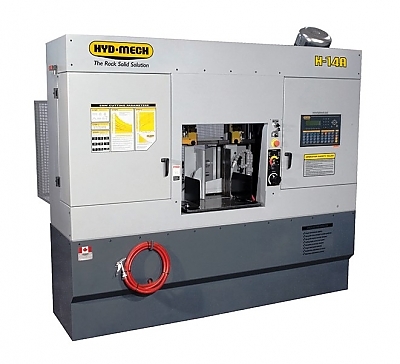

The H-14A is an automatic horizontal band saw providing accurate 90° metal cutting for medium to heavy-duty applications.
The H-14A is fast, with its high speed shuttle feed indexing up to 34″ in a single movement. Its standard spilt front vise delivers a short material remnant length, reducing material waste.
Featuring a 14″ x 14″ capacity, 7.5 HP motor, and 1 1/4″ blade, the H-14A is a reliable choice for all your horizontal metal cutting applications.

Automatic Horizontal Band Saw

Standard Features

• 7.5 HP motor with A/C inverter
• Mitsubishi PLC controls 999 jobs and 10 job queue functions
• Shuttle vise mounted on linear rails with 34″ single stroke (multi-indexing)
• Positive down feed system
• Cast iron guide arms supported by two linear bearings
• Replaceable carbide guide inserts
• Split front vise
• Blade breakage switch
• Blade brush
• Hydraulic chip auger
• Halogen work light
• Flood coolant system
• Wash down hose
• *New* Blade deviation monitor
• *New* Out of stock switch



Specifications

• Capacity at 90°: Rectangular 14″ x 14″
• Round: 14″
• Blade Size: 1 1/4″
• HP: 7.5 HP
• Operation: Automatic
• Mitering: 90° straight cuts
