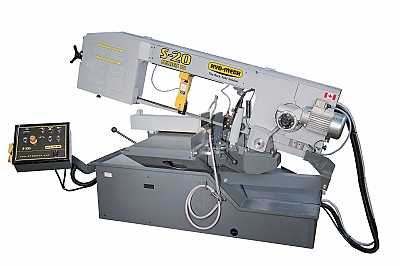

HYD-MECH S-20

The S-20 manual band saw features a swing head design and provides exceptional miter cutting capability for light to medium duty applications. Featuring a 13″H x 18″W capacity at 90°, 3 HP motor, and 1″ blade, the S-20 is a versatile machine ideal for use in tight working spaces.

Manual Scissor Style Band Saw

Standard Features

• 60 degree one-way miter capability
• 1” x 14’10” blade
• Heavy duty cast band wheels
• Laser light
• 3 Hp direct drive motor with A/C inverter offering variable speed from 45-330 SFM
• Cast iron guide arms. Adjustable idler guide arm, supported by linear bearings
• Safety door interlocks
• Heavy duty vise with quick locking lever system
• Pre-set carbide guide inserts (no adjustment needed)
• Manual blade tension with LED display on control panel ensures proper blade tension
• Flood coolant system and wash down hose
• Blade breakage switch
• Ergonomically positioned “swing away” control panel
• Work light
