Jet Equipment & Tools Ltd

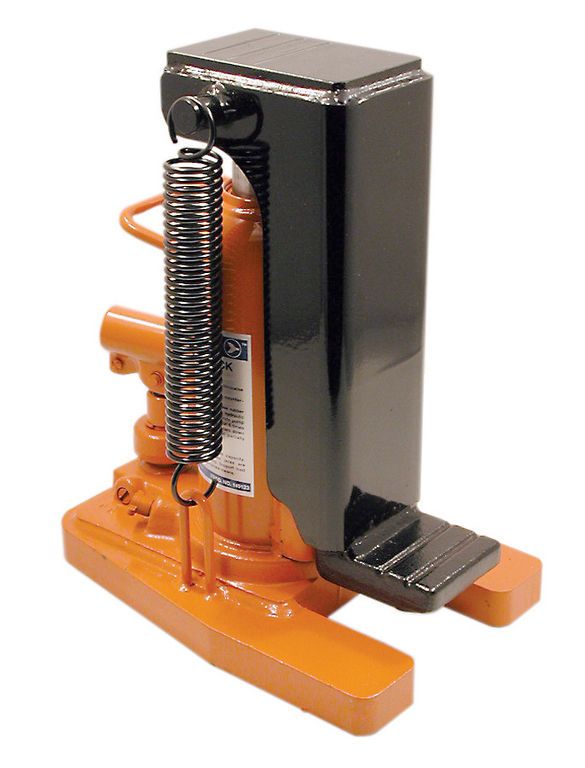

5 Ton Hydraulic Toe Jack - Super Heavy Duty
|
Product No.: 149123
Model No.: JTJ-5SV
Product Category: Hydraulic/Mechanical Jacks
Product Group: Hydraulic Toe Jacks
Product Subgroup: JTJ Series – Super Heavy Duty
• For use where exceptionally low pick up height is required
• Extra wide base for maximum stability
• Electrically welded base and cylinder assures strength and eliminates leaks
• 200° handle socket for operation from any direction
• Load can be applied to toe or head
• Capacity rated at toe and increases if load applied to head
• Complete with overload protection
• Not affected by temperature extremes
• Rigidly adheres to JIS and ANSI standards
• Tested to over 150% of rated capacities
• Made in Japan
Specs
Specs
Shipping Weight: 51.7 lb (23.5 kg)
Product Weight: 50.6 lb (23 kg)
Rated Capacity (Toe): 5
Rated Capacity (Head): 6
Minimum Height (Toe): 1"
Maximum Height (Toe): 5-5/8"
Minimum Height (Head): 11-1/2"
Maximum Height (Head): 16-1/8"
