Sew-Eurodrive Company

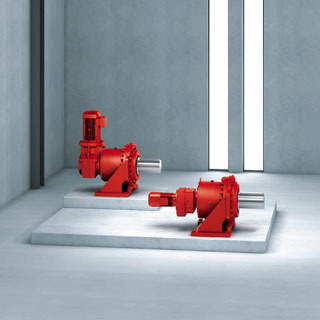

Helical-bevel planetary gear units (gearmotors)
|
Our benefits
• Perfectly matched units (gear unit and motor)
• Large range of options thanks to the SEW-EURODRIVE modular concept
• Short, compact design since there is no need for couplings and adapter flanges. Standardized units, which means an excellent cost-performance relationship and increased availability.
Up to now, it was almost impossible to order planetary gearmotors in this power class from a catalog. Our P series products are a significant step closer to achieving this ideal. The gear units are designed so that the gearmotor is directly mounted in front of the planetary gear unit. Couplings, intermediate flanges and adapter flanges that take up space and increase costs are a thing of the past. P series units are available in 9 sizes, covering the 24 to 359 kNm torque range. Areas of application for P gearmotors: all applications in which large weights have to be moved at low speeds.
|
Technical data
|
|||
|---|---|---|---|
|
Gear unit version
|
Stages
|
Gear ratios
|
Rated torque MN2[kNm]
|
|
Helical planetary gear units (motors) P.RF..:
|
4 and 5 stages
|
100 to 4,000
|
24 to 359
|
|
P.KF.. helical-bevel planetary gear units (motors):
|
5-stage
|
140 to 4,000
|
24 to 359
|
