Robertson Building Systems

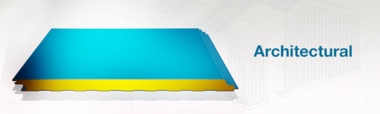

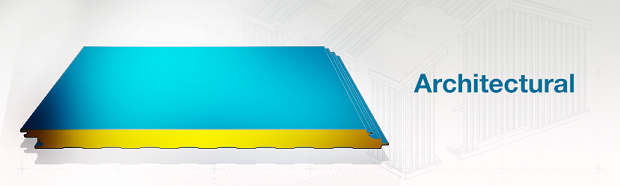

Architectural Wall Panel
|
The Architectural insulated wall panel is ideal for high-profile architectural applications. The panels may be installed either vertically or horizontally for maximum design flexibility. Multiple module widths and joint reveals add to the design variations available. Attached with concealed clips and fasteners in the side joint, Architectural wall panels provide a beautiful flush appearance.
The Architectural insulated wall panel is ideal for high-profile architectural applications. The panels may be installed either vertically or horizontally for maximum design flexibility. Multiple module widths and joint reveals add to the design variations available. Attached with concealed clips and fasteners in the side joint, Architectural wall panels provide a beautiful flush appearance.
Exterior Profile
Architectural flat with flush or reveal side joints for high profile projects
Interior Profile
Light Mesa nominal 1/16″ deep
Panel Core
Foamed-in-place, Non-CFC & zero ODP polyurethane, FM Class 1 approval
Thermal Values
K-factor, Btu in/ft2 hr. °F @ 75°F (24°C) mean core temperature = 0.140
K-factor, Btu in/ft2 hr. °F @ 40°F (4°C) mean core temperature = 0.126
Module Width
24″, 30″, 36″
Panel Thickness
2″, 2 1/2″, 3″ and 4″
Panel Lengths
8′-0″ to 32′-0″
Horizontal Application Reveal Widths
1/4”,1/2”, 3/4”, 1”, 1-1/2”, 2”, 2-1/2” and 3”
Exterior Facings
Stucco embossed, architectural flat, G-90 galvanized and/or AZ-50 aluminum-zinc coated steel in 22 Ga.
Interior Facings
Stucco embossed, G-90 galvanized and/or AZ-50 aluminum-zinc coated steel in 26 Ga., 24 Ga. and 22 Ga.
Panel Joint
Offset double tongue-and-groove with extended metal shelf for positive face fastening
Fastening
Fastener and Clip concealed in the side joint
Exterior Finishes & Colors
Siliconized Polyester, Fluropon® Full-Strength 70% PVDF Fluoropolymer Coating.Note: Prices may vary by color, gauge and quantity of metal.
Interior Finishes & Colors
USDA-compliant Polyester, Igloo White.
USDA-compliant PVC Plastisol, Polar White**PVC Plastisol Polar White is a different color & shade than Polar White in other available finishes.
FM Approved Class 1 with no height restrictions.
