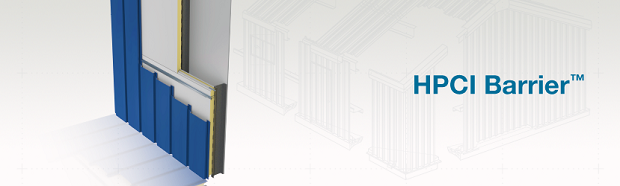

HPCI Barrier

The HPCI Barrier™ insulated metal panel is an air, water, thermal and vapor barrier panel that can be used behind any type of facade. The HPCI Barrier back-up panel is installed in a horizontal orientation completely outside the structural supports. There are no thermal bridges to reduce the energy efficiency of the wall. HPCI Barrier is quick and easy to install and provides an economical solution to conventional air, water, thermal and vapor control without sacrificing thermal efficiency.



Exterior Profile

No profile embossed



Interior Profile

Light Mesa embossed



Panel Core

Foamed-in-place, Non-CFC & zero ODP polyurethane



Thermal Values

K-factor, Btu in/ft2 hr. °F @ 75°F (24°C) mean core temperature = 0.140



Module Width

42″



Panel Thickness

2″, 3″, 4″ thickness also available from Nevada plant)



Panel Lengths

8′-0″ to 24′-0″



Exterior Facings

Minimum .016″ thick HPCI galvanized steel



Interior Facings

Minimum .016″ thick HPCI galvanized steel

Panel Joint

Offset double tongue and groove with extended metal shelf for positive face fastening



Fastening

Fastener and Clip concealed in the side joint Factory caulking available



Finishes & Colors

White polyester



Oil Canning

All flat metal surfaces can display waviness commonly referred to as “oil canning.” “Oil canning” is an inherent characteristic of steel products, not a defect, and therefore is not a cause for panel rejection.



Note: The HPCI Barrier Panel must be separated from the interior of the building by an approved thermal barrier of .5″ (12.7mm) gypsum wallboard to meet IBC requirements.



Unlike traditional backup wall systems, the HPCI Barrier is easily and quickly installed in a single step – eliminating the need for multiple work crews, minimizing construction debris, and reducing the likelihood of improper installation that could strike any stage of a traditional multi-layer scenario. In addition, the HPCI Barrier back-up panel is installed in a horizontal orientation completely outside the structural supports, so there are no thermal bridges to reduce energy efficiency. It’s an advanced all-in-one insulated metal composite solution – backed by the industry innovation of Robertson Buildings.
