Santa Fe Wall Panel

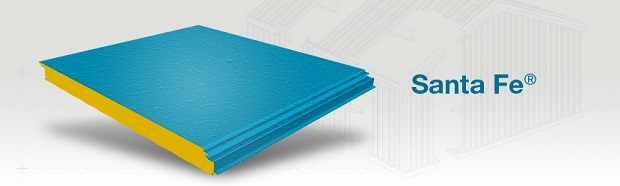

The Santa Fe® insulated metal wall panel has a flat exterior profile with a heavily embossed, stucco texture that mimics the look of masonry stucco.



The Santa Fe® panel has a standard FM Approved Class 1 foam core and offers excellent insulating values. The metal and foam composite construction creates a rigid panel far stronger than the individual parts. This increases the span capability of the panel and reduces the need for secondary structural components.



Note: Not intended for exterior walls on cold storage buildings.



Exterior Profile

Flat profile with heavy stucco embossing



Interior Profile

Mesa wave pattern, nominal 1/8” deep. Light Mesa wave pattern, nominal 1/16” deep.



Panel Core

Foamed-in-place, Non-CFC & zero ODP polyurethane, Factory Mutual Class 1 approval.



Thermal Values

K-factor, Btu in/ft2 hr. °F @ 75°F (24°C) mean core temperature = 0.140

K-factor, Btu in/ft2 hr. °F @ 40°F (4°C) mean core temperature = 0.126



Module Width

36″, 42″



Panel Thickness

2”, 2-½”, 3” & 4”(2-¾” thickness also available from Nevada plant)



Panel Lengths

8′-0″ to 40′-0″

Exterior Facings

Heavy stucco embossed, G-90 galvanized and/or AZ-50 aluminum-zinc coated steel in 24 Ga. and 22 Ga.



Interior Facings

Stucco embossed, G-90 galvanized and/or AZ-50 aluminum-zinc coated steel in 26 Ga., 24 Ga. and 22 Ga.



Panel Joint

Offset double tongue-and-groove with extended metal shelf for positive face fastening.



Fastening

Fastener and Clip concealed in the side joint



Exterior Finishes & Colors

Siliconized Polyester, Fluropon® Full-Strength 70% PVDF Fluoropolymer Coating.Note: Prices may vary by color, gauge and quantity of metal.



Interior Finishes & Colors

USDA-compliant Polyester, Igloo White.

USDA-compliant PVC Plastisol, Polar White**PVC Plastisol Polar White is a different color & shade than Polar White in other available finishes.

FM Approved Class 1 with no height restrictions.



Superior Insulating Value across the entire wall and roof area is assured. The advanced polyurethane core provides enhanced insulation values that significantly lowers heating and cooling costs.



One-Piece Construction process assures rapid completion of the wall and roof system. Factory fabricated composite panels are attached directly to the supporting structure and multiple steps to construct the insulated wall and roof are eliminated. Faster building completion means reduced construction and interim financing costs.



Lightweight yet Structurally Strong panels weigh only 2 ½ to 3 ½ pounds per square foot, but are structurally strong enough for long spans that can significantly reduce costs for frame support.



Impermeable Faces & Built-in Thermal Breaks ensure the highest insulating values are maintained for the life of the building. Panels are manufactured with impermeable faces and when installed the insulation is completely encapsulated by metal trim that creates an impermeable membrane on all sides of the panel. The aged “R” values are comparable to the initial “R” values many years after the buildings original completion. Assured thermal values mean lower heating and cooling costs.



Class 1 Polyurethane Foam meets the requirements of the major model building codes for many types of construction. Unlike panels with expanded polystyrene cores they will not produce a self-propagating fire. Local building codes may require automatic fire suppression systems for most installations.



Concealed Attachment with clips and fasteners at the side joint of the panel offers a clean high profile appearance. No more barn like metal building looks.



Santa Fe Panels are Lightweight, yet very strong and durable attributing to reduced costs for erection and structural support.
