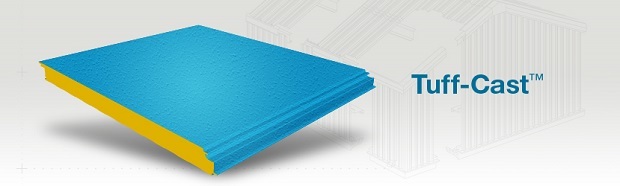

Tuff-Cast Wall Panel
|
Tuff-Cast™ and Tuff Wall® insulated metal panels have a factory applied, hard aggregated fiber reinforced polymer coating called Tuff Cote®. Tuff Cote® finish offers an extremely durable, impact-and abrasion-resistant coating that withstands severe weather conditions.
Tuff-Cast™ and Tuff Wall® insulated metal panels have a factory applied, hard aggregated fiber reinforced polymer coating called Tuff Cote®. Tuff Cote® finish offers an extremely durable, impact-and abrasion-resistant coating that withstands severe weather conditions.
Tuff-Cast™ is an exceptionally attractive insulated wall panel that provides the appearance of finished pre-cast concrete with a tilt-up look.
Tuff Wall® panels mimic a stucco-like finish that provides the masonry look that many designers and communities desire.
Unlike field-applied finished that are vulnerable to damp or cold weather during installation, Tuff-Cast™ and Tuff Wall® panels can be erected in virtually any weather conditions. The interior face of the panel is finished with an attractive Mesa profile and painted with a white polyester coating.
FEATURES AND BENEFITS
Panels combine the thermal efficiency of an insulated panel with the masonry look of stucco or finished pre-cast concrete walls.
The stucco and pre-cast textures conform to the aesthetic demands required by many communities and business developments.
The durable finish is highly resistant to impact and abrasion and maintains its attractive color for years.
Field-tested and proven, the Tuff Cote® finish has a 10-year limited finish warranty.
Exterior Profile
Tuff Cote® finish system – a hard aggregated fiber reinforced polymer coating. Flat profile on 2”, 2 ½”, 3”& 4” panels; Mesa profile on 5”& 6” panels.
Interior Profile
Light Mesa wave pattern, nominal 1/16” deep
Panel Core
Foamed-in-place, Non-CFC & zero ODP polyurethane, Factory Mutual Class 1 approval.
Thermal Values
K-factor, Btu in/ft2 hr. °F @ 75°F (24°C) mean core temperature = 0.140
K-factor, Btu in/ft2 hr. °F @ 40°F (4°C) mean core temperature = 0.126
Module Width
36″, 42″
Panel Thickness
2″, 2 1/2″, 3″, 4″, 5″, 6″
Panel Lengths
8′-0″ to 40′-0″
Exterior Facings
Stucco embossed, G-90 galvanized and/or AZ-50 aluminum-zinc coated steel in 24 Ga. and 22 Ga. with factory applied Tuff Cote® finish system.
Interior Facings
Stucco embossed, G-90 galvanized and/or AZ-50 aluminum-zinc coated steel in 26 Ga., 24 Ga. and 22 Ga. Type 304 stainless steel in 26 Ga. embossed and unpainted.
Exterior Finishes & Colors
Tuff Cote® finish system is available in several colors. See color chart.
Interior Finishes & Colors
USDA-compliant Polyester, Igloo White. USDA-compliant PVC Plastisol White.
Panel Joint
Offset double tongue and groove with extended metal shelf for positive face fastening
Fastening
Fastener and Clip concealed in the side joint
FM Approved Class 1 with no height restrictions.
Tuff-Cast™ combines the look of finished precast concrete walls with the thermal efficiency of an insulated metal panel.
The durable finish on Tuff-Cast™ panels is highly resistant to impact and abrasion and maintains its attractive color for many years.
Field-tested and proven Tuff Cote® finish comes with a 10-year limited finish warranty.
The stucco and precast textures conform to the aesthetic demands required by many communities and business developments.
Tuff Wall® and Tuff-Cast™ panels can be erected in virtually any weather condition since the Tuff Cote® finish is unaffected by damp or cold weather, unlike field-applied stucco materials.
