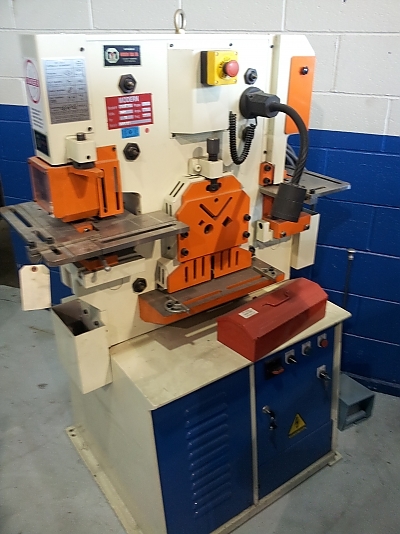

Fabmaster IW66K

Specifications:

Punching:

• Punching Pressure 66 Ton
• Punch Capacity 7/8″
• (diameter x thickness) 1-1/2″ x 7/16″
• Throat Depth S: 7-7/8″
• Maximum Stroke Length 1-1/2″
• Cycles/Min. (15 mm stroke) 34
• Working Height Up to Die 41-1/4″

Ironworker

Flat Shearing:

     • Flat Bar Shearing 14″ x 5/8″
     • (width x thickness) 10″ x 11/16″
     • Blade Length 14-1/4″
     • Working Height 31-3/4″


• Angle Shearing:

     • At 90 Shearing 4″ x 4″ x 5/16″
     • Working Height 42″


• Bar Shearing:
     • Round Bar Shearing 1-1/2″
     • Square Bar Shear 1-1/2″ X 1-1/2″
     • Working Height 41-1/4″


• Notching:

     • Rectangular Notcher (W x D x T) 2′” x 3-1/2″ x 5/16″
     • Working Height 41-1/4″


• Other:

     • Electric Power (HP) 7.5 HP, 208 Volt, 3 Ph
     • Net Weight (approx.) 3,596 lbs
     • Machine Dimensions 47″ x 30″ x 64″
     • (L x W x H) (approx.)
     • Packing Dimensions 57″ x 36″ x 75″
     • (L x W x H) (approx.)
