Wabash Mfg. Inc.

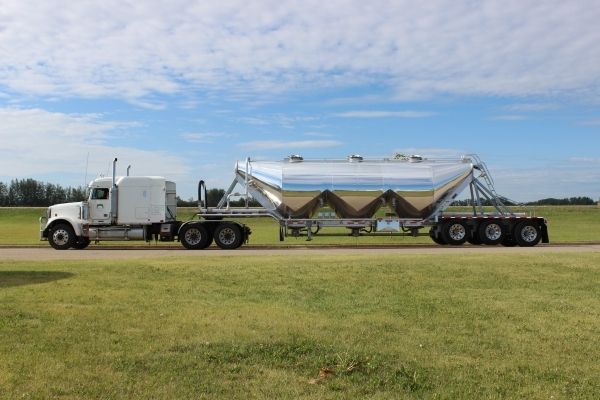

2015 PNEUMATIC DRY BULKERS
|
Specification: versatile aluminum vessel for frac sand or cement / fly ash tare weight approx. 6900kg
• 1350 cu. ft. with (2) aluminum baffles between hoppers
• 1350 cu. ft. with (2) aluminum baffles between hoppers
• 3 hoppers with remote controlled 20 inch manway lids
• 4 inch sched-80 galvanized steel load line installed at each hopper ending wth a 40aa adapter and a 40va dust cap
• 18" clearance for bottom unloading through 8 inch valve at 3.2 metric tonnes per minute
• axles integral with suspension, raised center for straight unload line, front two axles lift automatically when empty.
• rear discharge line - 4 inch sched-80 galvanized steel terminated at rear with 4 inch cast iron male adapter & 40aa dust cap
• aeration system - (3) solimar fluidizers at each hopper with hopper savers. 2 inch brass/stainless ball valves control fluidizers at each hopper from air supply line on curbside
• gauges - (2) 4 inch liquid filled, (1) tank, (1) line, cabinet mounted
• aluminum ladder installed at rear with grip strut top step
• walkway skid resistent adhesive tape between toe rails top of tank
• toe rails full length at top with safety cable on top of street side toe rail
• option available for 20 inch dust filter (253 filter tubes) or 30 inch dust filter (400 filter tubes) at additional cost
Contact larry strilchuk or patsy corey at (780) 349-4282 for more information on this unit or email our sales team at sales@wabash.ca
