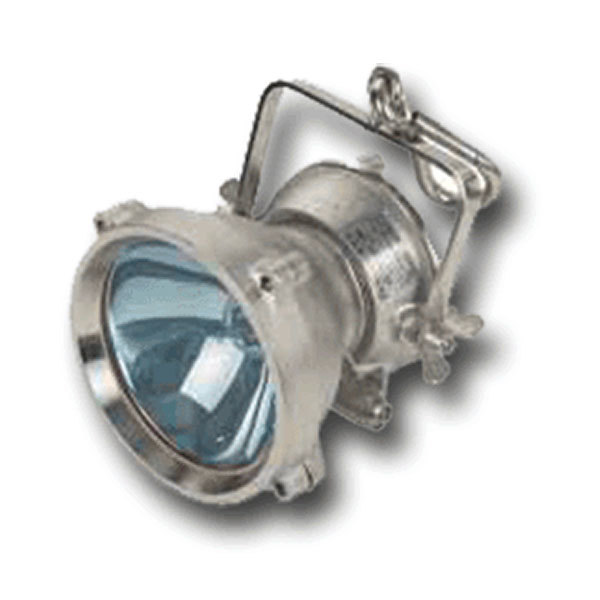

Airturbo Lamp
|
The Airturbo lamp is BASEEFA certified for use in zones 1 and 2 industrial hazardous areas. It offers a safer alternative to low voltage lighting in dangerously wet conditions or in flammable gases and vapours. Once connected to a suitable air supply, continuous output of high quality general illumination is produced, even under water.
The Airturbo lamp has built-in safety features – an effectively pressurized and purged system, a protective curtain of air from the exhaust ports, instant cut-off of the lamp if the lens is broken and cooling of heat generating components.
COMPONENTS:
lamp housings are made with a spark free cast brass with a forged brass safety hook, all nickel plated;
the generator is a compressed air driven turbo-alternator of simple design and robust construction;
a gun metal impulse turbine wheel produces the energy to power the 12v 55w Tungsten halogen bulb.
55w/2lux
Fitted w/ a Bay Light type head to the generator for around illumination
Moulded ball glass containing the bulb is surrounded by a protective polycarbonate dome
Peak luminous intensity at 2.5 m radius
55w/900lux
15mm toughened glass lens for high impact strength and pressure resistance
Peak luminous intensity at 5m
Choice of reflectors for light concentration options:
Spot Beam utilizes a matte reflector to provide well diffused light (approx 30°); 40 lux
Flood Beam utilizes a polished reflector to provide a highly concentrated spot light (approx 4°); 900 lux
Replacement bulbs and filters are available
