Impact Beds

ASGCO®’s patented Impact Beds are designed and engineered to provide protection for your conveyor belt and system from impact damage caused by the impact of large heavy material falling onto the system.  Impact beds are the solution for many conveyor bulk material handling industries including; aggregate, cement, metal (copper, gold, iron ore, nickel, zinc,) mining and non-metal (coal, trona, potash, phosphate, gypsum) mining applications.



Design Features

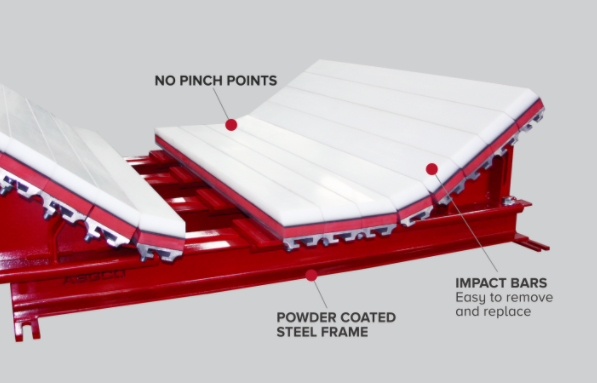

Improved Impact Beds – no pinch point or idler junction area utilizing our 17.5° bars for 35° idler systems; 10° degree bars for 20° idler systems and 22.5°degree bars for 45° idler systems.

Absorbs Impact – with heavy duty steel designed framework and our impact bars that are manufactured with our absorbent, 40-durometer rubber that can really take the shock of large material.

Modular Designed – cradles can be manufactured in 2′ (600mm), 4′ (1200mm) or 5′ (1500mm) long, depending upon the size of your material impact area.

Available in – standard duty (1,000 ft/lbs), mine duty (1,5000 ft/lbs) mine duty HD (3,000ft/lbs) of impact.



PROVIDE PROTECTION TO YOUR CONVEYOR BELT



40 Durometer Rubber Impact Bars – takes the shock of large material.

Patent Pending Design – for easy change-out.

Available – in standard duty (1,000 ft/lbs), mine duty (1,5000 ft/lbs) mine duty HD (3,000ft/lbs) of impact.



PRODUCT SPECIFICATIONS



Applications – Cement, Wood Processing, Recycling, Hard Rock Mining, Steel Mills, Aggregate Coal Plants and Mineral (Phosphate, Potash, Salt) Mining

Impact Bars – are available in Standard, HD and Premium in 2’, 4’ or 5’ length.

Trough Angle – available in 25°, 30° and 45°
