Trident S.A.

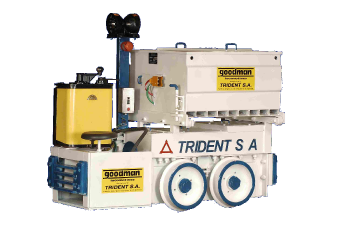

2.5 Ton Locomotive
|
• OPERATING MASS - 2000KG
• DRAWBAR PULL STARTING - 500KG
• DRAWBAR PULL RUNNING - 120KG 3KM/HR
• NUMBER OF TRACTION MOTORS - 1
• TOTAL POWER AVAILABLE - 3KW
• BATTERY CELLS - 24 48V CELLS 400AMP/HR
• GEAR RATIO - 1/6 + 1/2 DIA STEEL WHEEL
• MINIMUM CURVE RADIUS - 8M FULL SPEED 3M CREEP
• TOTAL LENGTH - 1830MM OVER BUMPERS
• TOTAL HEIGHT - 1170MM OVER BATTERY BOX
• TOTAL WIDTH - 940MM
• WHEEL BASE - 510MM
• WHEEL GUAGE - 457 OR 610MM
• MOTOR RPM - 475 @ 3KM/HR
