Trident S.A.

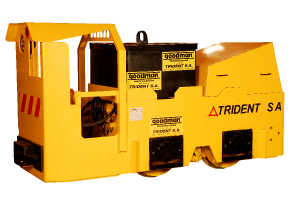

4 Ton Locomotive
|
• POWER SUPPLY BATTERY - 48V 24 CELL
• OPERATING MASS - 5000KG
• DRAWBAR PULL STARTING - 9800M
• DRAWBAR PULL RUNNING - 6000N @ 5KM/HR
• NUMBER OF TRACTION MOTORS - 1
• TOTAL POWER AVAILABLE - 8KW
• GEAR RATIO - 0.5375
• MINIMUM CURVE RADIUS - 7M @ CREEP SPEED
• TOTAL LENGTH - 2900MM
• TOTAL HEIGNT - 1650MM
• TOTAL WIDTH - 1100MM
• WHEEL BASE - 914MM
• WHEEL GUAGE - 457MM
• MOTOR RPM - 330@8.5 KMHR
