Jet Equipment & Tools Ltd

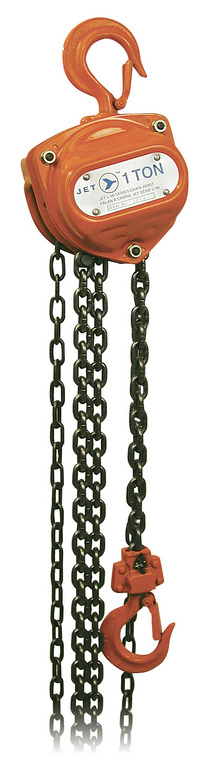

1/2 Ton 10' Lift L-90 Series Chain Hoist - Super Heavy Duty
|
Product No.: 101202
Model No.: L90-0502
Product Category: Manual Hoists & Pullers
Product Group: Chain Hoists
Product Subgroup: L-90 Series – Super Heavy Duty
• The strongest chain hoist available!
• Exclusive Class V+ load chain is the world's strongest grade
• Provides unparalleled safety for the most demanding applications
• Chrome Molybdenum load gears for maximum strength and resistance to shock
• Load sheave is designed for long wear with uniform pockets for correct chain contact
• Drop forged hooks are designed to bend slowly to warn of overloads
• Rolled edge on hand wheel cover acts as a chain guide and allows smooth operation even when pulling the hand chain at an angle
• Positive ratchet, screw and disc are completely enclosed to protect the brake mechanism
• Non-asbestos wet friction brake discs will not slip even when oil is present
• Electrostatic powder coated before assembly to protect against rust and corrosion
• Capacity unaffected by temperatures up to -40ºC with suitable winter lubrication
• Tested to 150% of rated capacity
• Meets OSHA and ANSI B30.16 standards (certificate included)
• Made in Japan
• NOTE: Custom Lifts are available in any length desired. Ask your local JET distributor for details!
• INSERT HAND DRAWN DIAGRAM
• safety hooks icon
• super heavy duty icon
Specs
Shipping Weight: 22.7 lb (10.3 kg)
Shipping Weight: 22.7 lb (10.3 kg)
Product Weight: 22 lb (10 kg)
Rated Lifting Capacity (Tons): 1/2
Rated Lifting Capacity (lbs): 1,100
Standard Lift: 10'
Head Room: 10-3/4"
Number of Falls: 1
Load Chain Diameter: 5.0mm
Force Req. to Lift Capacity (lbs): 59
Length of Hand Chain Pulled to Lift Load 1 ft: 29'
A: 10-3/4"
B: 6-1/8"
C: 2-9/16"
D: 3-9/16"
E: 5-1/2"
F: 1-1/8"
G: 1-7/16"
H: 21/32"
I: 1/2"
