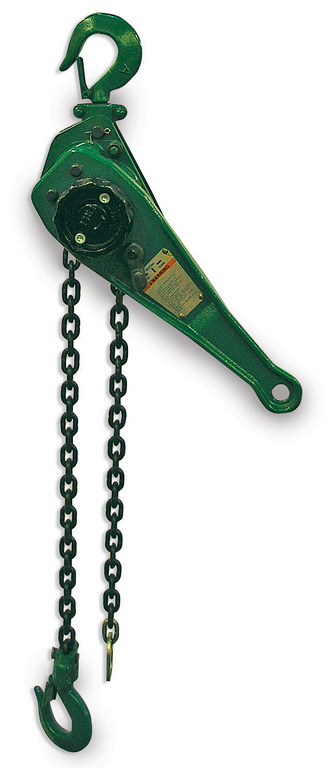

3/4 Ton 5' Lift #10 Series Cast Lever Chain Hoist - Super Heavy Duty

• The toughest lever chain hoist made!
• High tensile strength cast steel housing protects gears from impact damage
• Cast steel handle provides maximum strength and leverage
• Simple design makes routine inspection or maintenance fast and easy
• Non-asbestos brake discs use a high quality low abrasion aramid fibre material for a safer and healthier environment
• Easy free wheeling system automatically returns to hoisting mode when load is applied
• High grade low-wear chain is strong and smooth finished to prevent snagging or jamming
• Gauge included to check for chain elongation and hook stretch
• Top and bottom safety hooks are standard, and are designed to bend slowly to warn of overloads
• Each unit is tested to 150% of rated capacity
• Meets ANSI B30.21 Standards (Certificate included)
• Made in Japan
• NOTE: Custom Lifts are available in any length desired. Ask your local JET distributor for details!
• INSERT HAND DRAWN DIAGRAM
• safety hooks icon
• super heavy duty icon
• JET exclusive icon


Specs
Shipping Weight: 22.3 lb (10.1 kg)

Product Weight: 16.94 lb (7.7 kg)

Rated Lifting Capacity (Tons): 3/4

Standard Lift: 5'

Number of Falls: 1

Load Chain Diameter: 5.6mm

Min Distance Between Hooks: 12-3/8"

Distance per Handle Pull: 1-1/16"

Force Req. to Lift Capacity (lbs): 66 lbs

Lever Length: 10-1/2"

A: 12-3/8"

B: 8-9/16"

C: 2-15/32"

D: 3-1/2"

E: 2-19/32"

F: 3-63/64"

G: 61/64"

H: 1-3/8"

I: 2-3/16"

J: 4-15/64"

K: 6-27/64"

L: 1-3/16"

M: 10-1/2"

N: 37/64"

O: 4-59/64"
