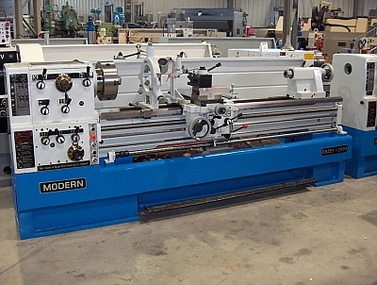

Modern 3A-30120W

Capacities:

• Swing Over Bed: – 30″
• Swing Over Cross Slide: – 22″
• Swing Over Gap: – 39″
• Spindle Bore: – 9-1/6″
• Width of Gap: – 18″
• Centre Distance: – 160″

Headstock:

• Main Motor: – 20HP/600V/3PH AC Inverter Motor
• Mount: – D1-11

Heavy Duty Lathe

Threads and Feeds

• Threads Cutting (No.) Range: – 2-28 TPI (36 Kinds)
• Module Threads (No.) Range: M.P. – 0.5-7M (22 Kinds)
• D.P. – 4-56P (36 Kinds)
• Longitudinal Feeds: – 0.05-0.7 (36 Kinds)
• Cross Feeds: – 0.025-0.35 (36 Kinds)
• Diameter of Lead Screw: – 1-3/4″ x 2 TPI

Tailstock

• Travel of Quill: – 9″
• Spindle Taper: – MT5

Bed

• Width: – 18″

Standard Accessories

• Coolant System
• Turret type 4-Position Bed Stop
• 3-Jaw Back Plate
• Tail Stock Centre
• Batch Lube in Change Gear Box
• Force Lube in Slide Way
• Full Length Splash Guard
• Rapid Traverses

Optional Accessories

• 20 – 3-Jaw Steel Bison Chuck
• 25 – 4-Jaw Steel Bison Chuck
• Steady Rest (300-550mm)
• Steady Rest (50-380mm)
• Follow Rest
• Taper Attachment
• Quick Change Tool Post
• 5 holders and Boring bar
• Halogen Work Light
• Fagor DRO Installed
• Left Hand Apron Hand Wheel
• 24″ Face Plate
