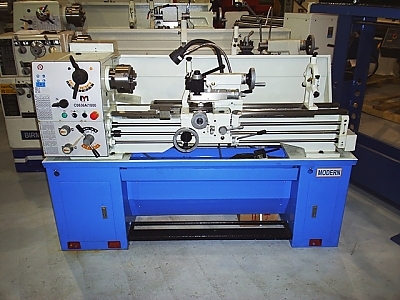

Modern C0636A x 1000 (1440)

Specifications:

• Swing Over Bed: – 360mm (14”)
• Swing Over Cross Slide: – 212mm (8-1/16”)
• Swing in Gap Diameter: – 491mm (9-1/3”)
• Swing in Length: – 210mm (8-1/4”)
• Centre Height: – 166mm (6-1/2”)
• Centre Distance: – 1000mm
• Spindle Bore: – 38mm (1-1/2”)
• Spindle Nose: – D1-4”
• Speeds Range: – 70-2000RPM
• Quill Taper: – #3 M.T.
• Main Motor: – 2 HP – 1PH

Lathe

The brand-name MODERN is synonymous to quality and performance. For over 20 years, MODERN machines have been sold, tried and tested in North America. We call that SUCCESS!

Standard Accessories

• 3-Jaw Chuck – 6”
• 4-Jaw Chuck – 8”
• Face Plate (300mm)
• Steady rest
• Follow rest
• Splash Guard
• Cabinet
• Floor Stand
• Foot Brake
• Lamp
• Coolant Pump
• 4-Way Toolpost
• Taper Attachment
• Reduction Sleeves MT #5/3
• Centers(Dead Center MT#3, Alloy Center MT#2)
• Metric Changing Gears (m=1.25 (8 pieces)
• Tool Box and Tools(1 Set)
• Oil Gun (1 Piece)
