Modern LA 560 x 2000

Standard Equipment:

• Center Sleeve
• Dead Center
• Levelling Screws
• Service Kit
• Steady Rest
• Drive Plate
• Coolant
• Follow Rest
• Steady Rest
• Halogen Lamp
• Taper Attachment
• Full Length Splash Guard
• 15” 3 Jaw Chuck
• 16” 4 Jaw Chuck
• Fagor 2 Axis Digital Readout

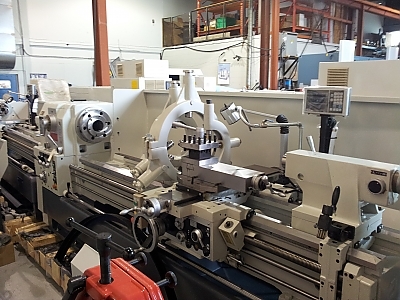

Precision Lathe

The brand-name MODERN is synonymous to quality and performance. For over 20 years, MODERN machines have been sold, tried and tested in North America. We call that SUCCESS!



Spesifications

• Bed Width: – 15-3/4″
• Total Travel of Top Slide: – 7-1/2″
• Swing Over Bed: – 22″
• Swing Over Cross Slide: – 13″
• Swing in Gap: – 30-7/8″
• Gap Width in Front of Face Plate: – 10-5/8″
• Height of Centers from Leg Bottom: – 42″
• Distance Between Centers: – 80″
• Number of Spindle Speeds: – 12
• Spindle Bore: – 4-1/16″
• Type of Spindle Nose: – D1-11
• Taper of Spindle Bore & Center: – MT No. 7 x No. 5
• Range of Spindle Speeds: – 8 – 800 RPM
• Range of Inch Threads: – 4 PTI: 2-72, 2 PTI:1-36
• Range of Metric Threads: – 6mm: 0.2 ~ 14
• Number of Feeds: – 36
• Range of Longitudinal Feeds: – Inch: 0.035~0.98 (0.0014″~0.039″)
• Range of Cross Feeds: – ½ of Longitudinal Feeds
• Tailstock Quill Diameter: – 2-15/16″
• Total Travel of Tailstock Quill: – 7″ – MT#5
• Taper in Tailstock Quill: – MT#5
• Spindle Drive Motor: – 15HP/208V / 3PH
• Coolant Pump: – 1/8



Optional Equipment

• Larger Steady Rest
• 2 Axis Fagor DRO Installed
