Home > Suppliers Companies > York Fluid Controls Ltd. > Products Blagdon Pumps > Metallic Pumps > B06 Metallic Pump from Blagdon Pump
York Fluid Controls Ltd.

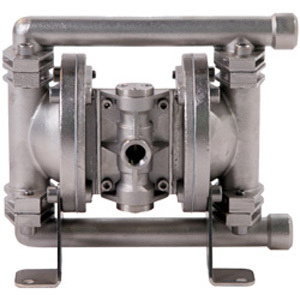

B06 Metallic Pump from Blagdon Pump

• Simple construction, easy to maintain

• Self-priming, ideal for empting containers

• High-quality investment cast design

• Pressures to 8.1 bar (125 PSI)

• Flow rates up to 18 litres/minute (4.8 gal/min)

• Bolted construction for safety

• Reliable pneumatic air valve system

• Constructed from 316L stainless steel

B06 Metallic Pump
More information Data

Specifications

Maximum Delivery: 18 ltrs/min (4.8 gal/min)

Max. Working Pressure: 8.6 bar (125 PSI)

Max. Solid Particle Size: 1 mm. (0.04")

Air Inlet: 1/4" NPT

Temperature Limits: Determined by Elastomers

Suction Lift (Dry): 1.5 metres (4.9 feet)

Suction Lift (Wet): 4.1 metres (13.5 feet)

Fluid Inlet / Outlet: 1/4" BSP / NPT

Installation: Wall or surface mounted

Accessories Included: Exhaust Air Silencer

Shipping Weight: 3.7 kg. (8.2 lbs) stainless steel

Shipping Dimensions: 240 x 180 x 200 mm, 9/5" x 7.1" x 7.9"



 Data Sheet
