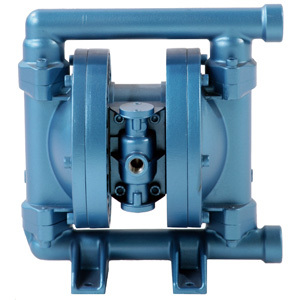

B15 Metallic Pump from Blagdon Pump
|
• Simple construction, easy to maintain
• Self-priming, ideal for empting containers
• High-quality investment cast design
• Pressures to 8.6 bar (125 PSI)
• Flow rates up to 60 litres/minute (16 gal/min)
• Bolted construction for greater integrity
• Reliable pneumatic air valve system
• Portable
Specifications
Maximum Delivery: 60 ltrs/min (16 gal/min)
Max. Working Pressure: 8.6 bar (125 PSI)
Max. Solid Particle Size: 2 mm. (0.08")
Air Inlet: 1/4" NPT
Temperature Limits: Determined by Elastomers
Suction Lift (Dry): 4.6 metres (15.1 feet)
Suction Lift (Wet): 6.1 metres (20 feet)
Fluid Inlet / Outlet: 1/2" BSP / NPT
Installation: Wall or surface mounted
Accessories Included: Exhaust Air Silencer
Shipping Weight: 5.9 kg. (13 lbs) aluminum
Shipping Dimensions: 320 x 200 x 340 mm, 12.6" x 7.9" x 13.4"
-
