Wabash Mfg. Inc.

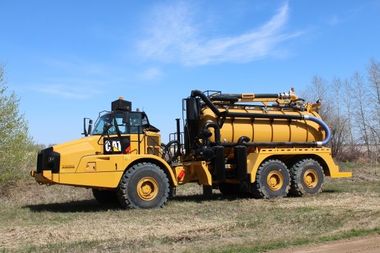

Off-Road Vacuum Truck

Off-road vacuum truck for dewatering on mine roads:
• Capacity of 25,000 Liters (6,800 USG)
• Hibon blower with maximum loading rate of 4,000 Liters per minute (1,055 US GPM) and unloading rate of 16,500 LPM • (4,350 US GPM) through the spray fan
• 8" Suction boom with isolation valve is activated by a joystick in the cab
• An available cold weather package adds a diesel fired coolant heater, heated valves, primary shutoff, rear door seal and cyclone.
• Full opening rear door with hydraulic clamping.  Door can be opened from the cab or ground level.
• Additional camera systems are available
• Carbon steel or stainless steel tanks are available
• Cyclone with quick access cleanout and drain valve
• LED Light package including redundant high mounted tail lights
• LED work lights
Off-Road Vacuum Truck
