Home > Suppliers Companies > Saminco Inc. > Products > MiningLocomotiveDrives > 240V Battery / AC VFD System for Dual Tram
Saminco Inc.

240V Battery / AC VFD System for Dual Tram

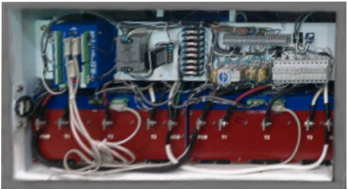

This system is a 240V Battery / AC system for Locomotive. It consists of 2ea. VFD tram drive and VFD pump drive in an explosion proof enclosure and operates 2ea.
75HP 55kW 140VAC traction motor and a 45HP 138VAC pump motor.
240V Battery / AC VFD System for Dual Tram
Saminco System Part #: A800789

This system is a 240V Battery / AC system for Locomotive. It consists of 2ea. VFD tram drive and VFD pump drive in an explosion proof enclosure and operates 2ea.
75HP 55kW 140VAC traction motor and a 45HP 138VAC pump motor.

Benefits  of  the  240V  AC  Drive  System

  • Easily retrofitted into current equipment
  • Failsafe - motor rotation will stop if drive fails
  • Low maintenance with AC motor

With  TURBO  TORQUETM  TRACTION  DRIVE

  • Better stall torque and higher top speed than the equivalent 50HP DC drive
  • Speed governor
  • Effective regen braking; minimizes the use of mechanical brakes

With  WHISPER  PUMPTM  ON-DEMAND  HYDRAULIC  PUMP DRIVE  SYSTEM

  • Reduced noise in pump idle mode, from 80 to 70 decibels
  • Significant battery energy reduction during idle
  • Smoother steering at pump idle
