Atlas Polar Company Ltd.
HB9100
|
Meet stringent fish and wildlife protection regulations with the fully automatic PLC controlled Hydrobrush cleaning system
Improves cleaning with the fully hydraulic Hydrobrush system that maintains constant screen pressure and adapts to various depths and rising floor
Reduces site operation and maintenance costs with Hydrobrush screen cleaner
Faster cleaning cycles with precisely controlled variable speed brushing for side travel

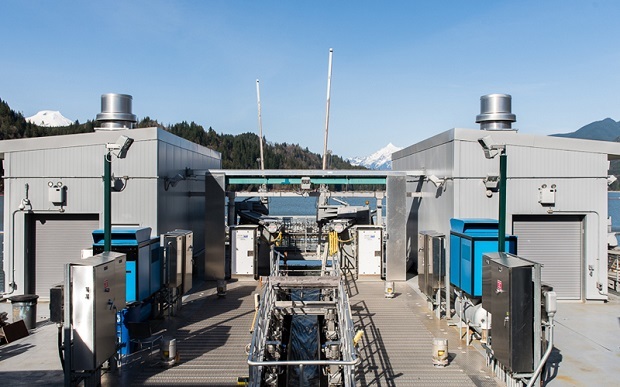

Introducing the new Atlas Polar HB9100 Hydrobrush Cleaning System. Ideally suited for fish monitoring and transfer facilities, the specially designed Hydrobrush head automatically cleans stainless steel screens while travelling horizontally under the waterline. This constant cleaning action maintains constant flow through screens.
Our latest innovation and an example of our commitment to respond to customer needs, the Atlas Polar Hydrobrush is ideal for fish monitoring or transfer facilities where keeping a constant flow through screens is essential. The specially designed Hydrobrush travelling horizontally automatically cleans stainless steel screens. The Atlas Polar Hydrobrush is ideal for water pump, fish monitoring, or transfer facilities. Any screen angle from vertical to 30 degrees can be brushed automatically.
Technical Specifications
Stainless steel wire orientation: Vertical
Brush length: Double bristle/4 feet/custom
Brush depth: 20 feet
Screen angle: 0 deg - 30 deg from vertical
Boom design: Single
PLC control: Auto control panel complete with HMI screen with alternate Radio controller
Power supply: 240/480/575v, 3 phase, 60 hz
Side-travel speed: 0-1 ft/sec.
Parts: Standard production items, hi-interchangeability
Hydraulic system: Maximum 2,250 psi
Inward brush pressure: Same as ST9000
