LOW VOLTAGE DISTRIBUTION POINTS

Container and Engine Control Centers (CSR Series)

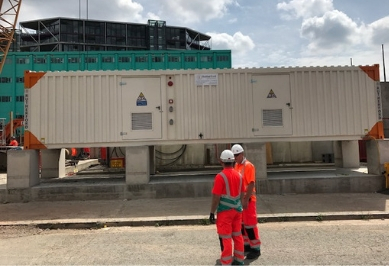

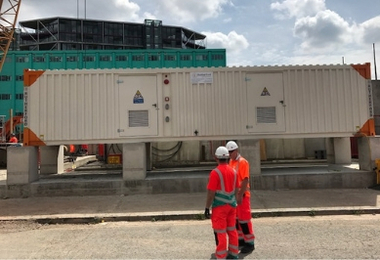

PBE container breakout rooms have been designed to distribute all voltage ranges for heavy industry, construction and tunneling. The containerized design provides a compact and easily transportable modular unit. The container breakout room provides a solution for immediate electrical connection without the need for permanent installation. This can be beneficial for construction sites that require temporary power for equipment.

There are two different types; medium and high voltage control centers and low voltage control centers. Both use switchboards installed in a container unit.



Specification



Rated voltage 6.6 kV - 22kV

Rated power 315kVA - 6MVA

Weight: 2T - 10T

Length 4000mm - 9000mm, height 1650mm-1800mm, width 1000mm - 1100mm



Manufacturing



3-10mm ISO Soft Steel Container

all-welded electrical enclosures

Anti-corrosion protection

Fire safety doors

Internal anti-slip floors

Transport certification

Suitability of rated lifting points



MV / HV switching room



Our medium voltage and high voltage container switch rooms vary according to the requested specifications. We use SF6 and vacuum circuit breakers and load break switches. The number of distribution points varies from different brands of gear shifters. Chargers in power control are standard.



Container



Container dimensions in accordance with ISO standard for easy transport without the need to transport oversized cargo. Access to the transformer compartment is ensured by mechanically bolted doors and covers equipped with safety switches. All modules, made in accordance with IEC standards, have inputs and outputs from the bottom or through the side entrance with geromovs or other adapters. Natural ventilation is ensured with protective strips.



Low Voltage Motor Control Centers



Motor control centers are usually low voltage, however, in heavy industry, motors are common up to 3.3 kV. Our designs include the requirement from our clients. We use vacuum or air circuit breakers for control centers.



Development of schematic diagrams



Compliance with Australian and international standards

Built-in protective relays

Custom assemblies are available to meet customer specifications or to ensure specific results are achieved

Easy to lift for on-site operation, robust construction and mechanical resistance. ISO fixing angles, lifting points and loader

Copper bar complies with Australian standards, conductive grease is used in connections

Lighting and small sockets are standard
