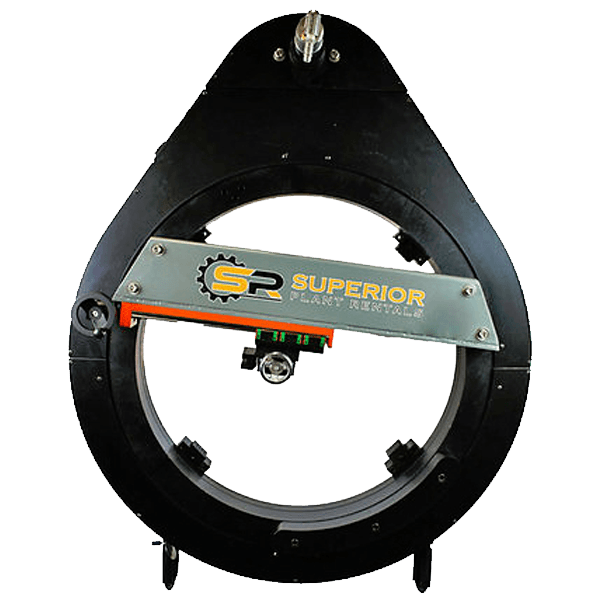

OD Mount Flange Facers
|
Superior’s O.D. Mount Flange Facers are the ideal machine for facing and end-prepping all types of flange surfaces. These belt driven machines use adjustable cam tensioners driven with a pneumatic motor, producing precise and repeatable results. The slide and compound are guided by a precision ball screw and linear rails resulting in a rigid system with exceptionally smooth travel. The compound can swivel to any angle off vertical providing flexibility to machine a variety of different gasket surfaces.
Superior’s O.D. Mount Flange Facers are the ideal machine for facing and end-prepping all types of flange surfaces. These belt driven machines use adjustable cam tensioners driven with a pneumatic motor, producing precise and repeatable results. The slide and compound are guided by a precision ball screw and linear rails resulting in a rigid system with exceptionally smooth travel. The compound can swivel to any angle off vertical providing flexibility to machine a variety of different gasket surfaces.
These machines are packaged with a 1/2” tool holder, air motor, oiler, air hose with control valve and lifting cables. Back facing attachments can be supplied for each size. Superior’s Aluminum O.D. Mount Flange Facers are available in 10”, 13”, 16”, and 20” sizes. Our Steel O.D. Mount Flange Facers are available in 32”, 42”, 52”, 62”,72”, 82”, and 102” sizes. An optional indicator jig is available for precision measuring.
Advantages
Aluminum Available in 10”, 13”, 16”, and 20” Sizes
Steel Available in 32”, 42”, 52”, 62”,72”, 82”, and 102” Sizes
Belt Driven
Both Radial and Axial feeds
Manual and Automatic feeds
All Types of RMS Finishes
Tool Holder for 1/2” Tool Bits
Compound Swivels to Machine all Angles, from 0 to 90 Degrees
Rigid Construction to Maximize Performance
Adjustable Jaws for Fast 4-Jaw Set Up
Back Facing Attachments Available
All Rotating Parts Concealed Behind Solid Cover
Pneumatic and Hydraulic Motors
Lifting Cables and Swivel Eyes Provided
