Newterra Ltd.
QUA-VAC Vacuflow
|
Newterra is proud to partner with QUA-VAC B.V. based in the Netherlands. This association establishes Newterra as the exclusive distributor of the Vacuflow product line in the United States, Canada, and the Caribbean.
The ability to offer collection systems, along with our modular sewage treatment facilities, gives Newterra’s customers a single point of responsibility. With its extensive background in remediation of groundwater and contaminated sites, Newterra naturally decided on the most reliable and environmentally friendly technology available for sewage collection.
Newterra is proud to partner with QUA-VAC B.V. based in the Netherlands. This association establishes Newterra as the exclusive distributor of the Vacuflow product line in the United States, Canada, and the Caribbean.
The ability to offer collection systems, along with our modular sewage treatment facilities, gives Newterra’s customers a single point of responsibility. With its extensive background in remediation of groundwater and contaminated sites, Newterra naturally decided on the most reliable and environmentally friendly technology available for sewage collection.
Vacuum Sewage Collection
Newterra is proud to partner with QUA-VAC B.V. based in the Netherlands. This association establishes Newterra as the exclusive distributor of the Vacuflow product line in the United States, Canada, and the Caribbean.
The ability to offer collection systems, along with our modular sewage treatment facilities, gives Newterra’s customers a single point of responsibility. With its extensive background in remediation of groundwater and contaminated sites, Newterra naturally decided on the most reliable and environmentally friendly technology available for sewage collection.
In addition to the combined Newterra/QUA-VAC systems, Newterra offers Vacuflow systems on a standalone basis and as a retrofit to other supplier’s existing vacuum sewage equipment. This will directly replace existing systems with Vacuflow systems, which have many technical advantages over competitive designs.
Components
- Gravity connection to house (up to 4), business, condo/apartment

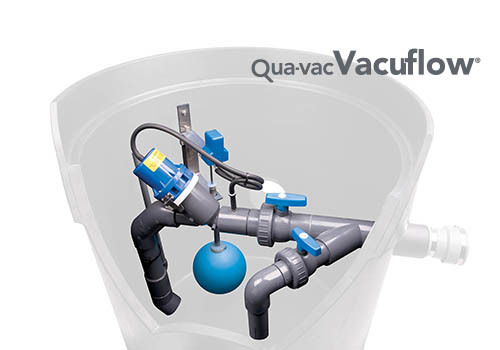

- Collection Chamber with Interface Unit
- Vacuum Connection
- Sawtooth Vacuum Piping in shallow trench
- Vacuum Station (may be in Newterra treatment system)
- Odor Control Unit (may be in Newterra treatment system)
- Discharge to Newterra treatment system or other location
Operation
- Water flows by gravity to chamber. Vacuflow valve closed.
- Start level reached, valve opens.
- Water pulled out of chamber by vacuum, air added in
- exact mixture to maximize transport.
- Stop level reached, valve closes.
Applications
As an alternative to costly gravity sewer systems, or high maintenance pumping systems,
Newterra offers Vacuflow, a proven, environmentally friendly vacuum collection system from
Qua-vac. In particular the technology addresses:
- Replacement for failing septic systems
- Areas with high water table such as:
– Islands, marinas
– Coastal communities, lakefront developments
- Areas with deep trench construction constraints such as bedrock or tight spaces
- Small villages, ribbon developments, remote camps
- Rolling terrain
- Environmentally sensitive or water protection areas
- New urban development in rural areas
- Retrofit of existing vacuum system components
Features
The Vacuflow/Newterra Solution
Sewage flows by gravity to a Collection Chamber buried in the ground; gravity connection to
house (up to 4), or to business, condominium or apartment. A central vacuum system applies
a constant vacuum to the piping network, buried in shallow trenches in a sawtooth fashion that
allows liquid to be lifted when necessary. Advantages of this system are:
Lower investment cost due to:
- Small pipe sizes
- Shallow, narrow trenches
- No manholes
- Pipe around obstacles
No lift stations
Sewage never goes septic, low odors
High velocity in pipes prevents blockages and scours pipe
No infiltration means smaller treatment system
No leakage means no environmental damage
Build in reserve volume at home in case of power outage
Eliminates potential for H2S gas hazards
