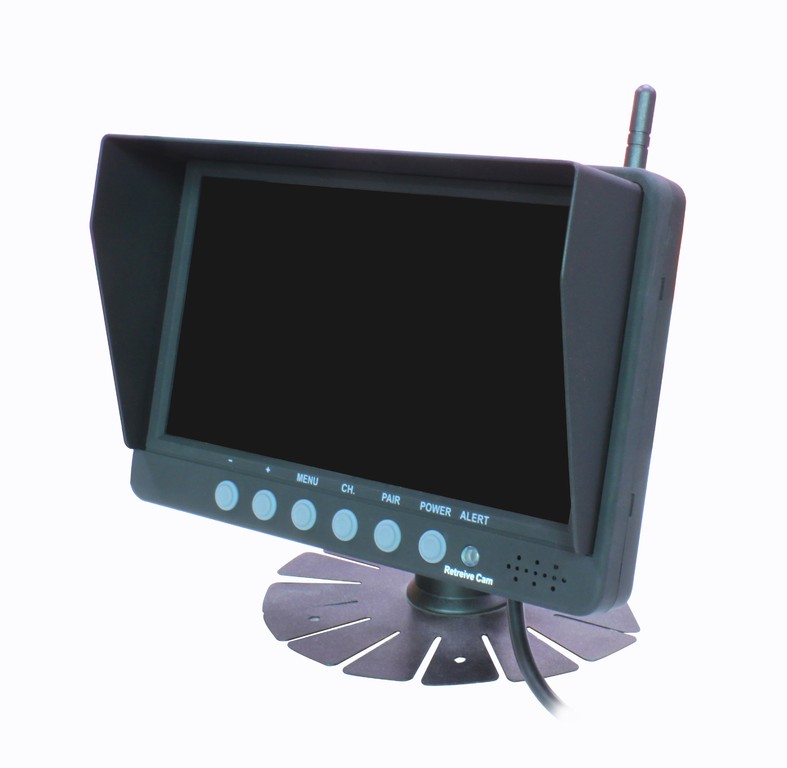

CT-M7204RF WIRELESS 7" MONITOR

• 2.4GHz Technology

• 7" Monitor with Digital Panel

• Resolution: 800*R.G.B*480

• Power voltage: DC 12V-24V

• Pairing indicator (flashes when paired, constant green light when successfully paired)

• LED Red flashing LED: Warning for lost connection between Magcam camera and receiver; Green LED when paired.

• Operating frequency: 2400-2483.5 MHz

• Decompression form: MPEG 4

• Emitting frequency: 18 dBm

• Transmitting speed: 12 Mbps

• Receiving Sensitivity: -78dBm@1MHZ 16QAM VR850/AV

• Spread spectrum: frequency hopping

• Hopping rate: 1200/S

• Outer dimension: 182(L) X 75(W) X 124(H) mm Brightness: 400cd/㎡.

• Viewing angle: U: 50°/ D: 60°, R/L: 70°

• Operating temperature: 0℃~+65℃

• Storage temperature: -30℃ to + 80℃ RH90%

CT-M7204RF WIRELESS 7" MONITOR

Whether you're a Fortune 500 Manufacturer, or a Fleet Manager with a handful of trucks, you all have one thing in common - you hate cables. The problem is/was that it isn't hard to find a wireless solution online, the problem is: THEY DON'T WORK. Convoy Technologies began working on a wireless solution several years ago when our large OEM customers complained about rats, chemicals, harsh whether, etc. eating through their cables; Not to mention the installation time and cost that are associated with running cable. We knew that only a wireless solution developed in-house (USA), and not outsourced to Asia, would provide the reliability and quality that our customers demanded. Convoy Technologies would like to introduce the first built-in wireless camera system available to the transportation industry. Designed and developed in the USA.
