C.A.G. Equipment
BB-40
|
Technical Specifications
Boring diameter 50-85mm / 1.96”- 3.34”
Max. boring depth 170mm / 6.69”
Spindle speed 394 RPM/min
Spindle feed 0.10mm/R
Motor
Voltage 220/380V
Power 0.25 kw
Speed 1440 R/min
Overall dimensions 14” x 11” x 29”
Packing dimensions 18” x 18” x 34”
Weight 105 lb

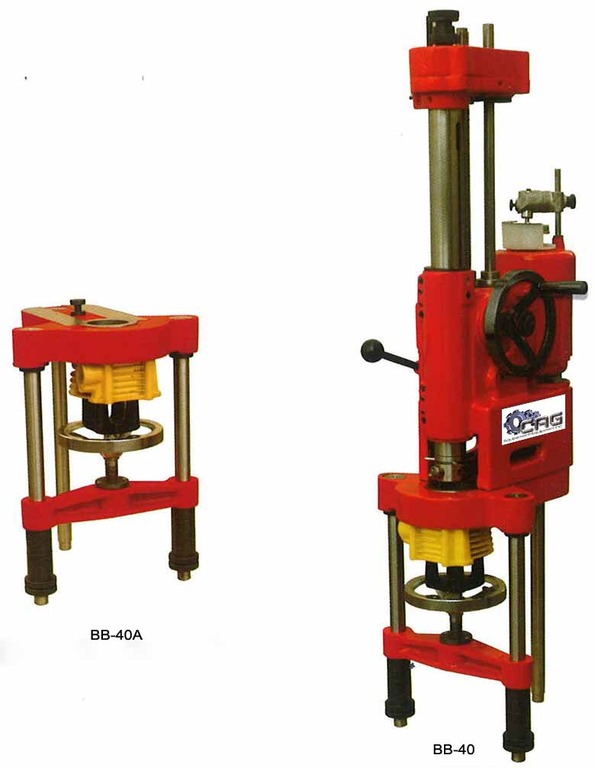

This machine is small in size, light in weight, it is mainly used for reboring engine cylinders of motor cycles, automobiles and middle & small tractors.
