C.A.G. Equipment

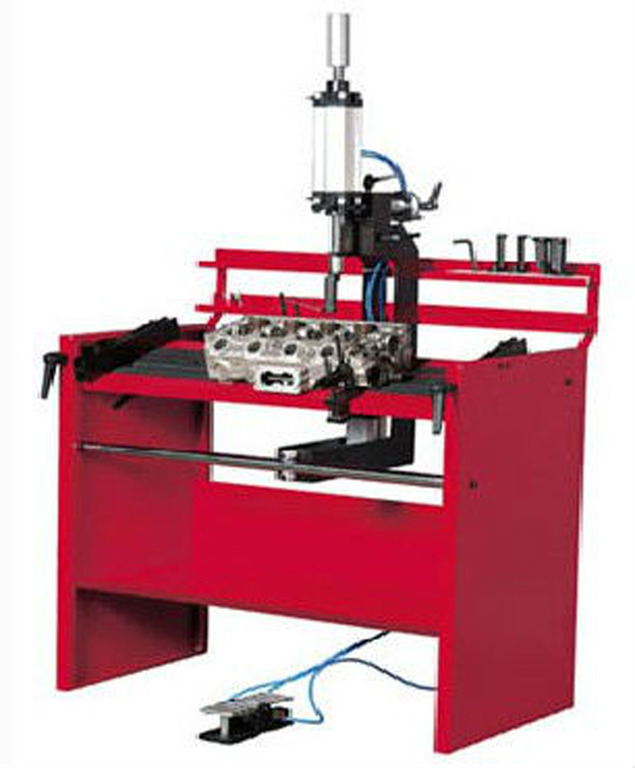

CAG-1100
|
Machine capacities (max)
Length1125mm / 44.29”
Width 390mm / 15.35”
Height 240mm / 9.45”
Weight 250kg / 550 lbs
Space requirements
Length 1260mm / 49.61”
Width 650mm / 25.59”
Height 1700mm / 66.93”
Net weight 130 kg / 286 lbs
The CAG-1100 provides:
- Maximum security system for assembly a disassembly of cylinder heads.
- Multiple movement pneumatic cylinder.
- Allows you to work on cylinder heads with any valve operational angle in any position.
- Significantly reduces valve spring installation time.
- Works with double action prank, with pneumatic retention, and frees up both hands for the process.
