B06 Non-Metallic Pump from Blagdon Pump

• Simple construction, easy to maintain

• Self-priming, ideal for empting containers

• Pressures to 5 bar (73 PSI)

• Flow rates up to 16 litres/minute (4.3 gal/min)

• Bolted construction for safety

• Low break out pressure requirement

• Reliable pneumatic air valve system

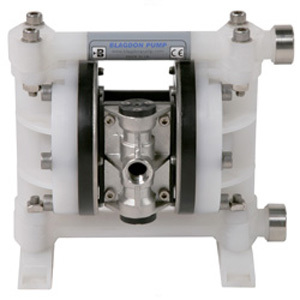

B06 Non-Metallic Pump
More information Data

Specifications

Maximum Delivery: 16 ltrs/min (4.3 gal/min)

Max. Working Pressure: 5 bar (73 PSI)

Max. Solid Particle Size: 1 mm. (0.04")

Air Inlet: 1/4" NPT

Temperature Limits: Determined by Elastomers

Suction Lift (Dry): 1.5 metres (4.9 feet)

Suction Lift (Wet): 4.1 metres (13.5 feet)

Fluid Inlet / Outlet: 1/4" BSP / NPT

Installation: Wall or surface mounted

Accessories Included: Exhaust Air Silencer

Shipping Weight: 1.7 kg. (3.8 lbs) polypropylene, 1.9 kg. (4.2 lbs) PVDF

Shipping Dimensions: 240 x 180 x 200 mm, 9.5" x 7.1" x 7.9"



 Data sheet
