York Fluid Controls Ltd.

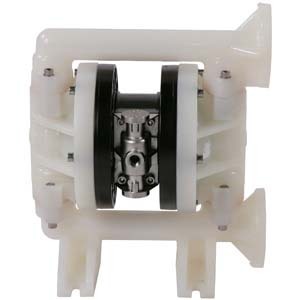

B15 Non-Metallic Pump from Blagdon Pump

• Simple construction, easy to maintain

• Self-priming, ideal for empting containers

• Strong, robust design

• Pressures to 8 bar (116 PSI)

• Flow rates up to 48 litres/minute (13 gal/min)

• Flanged or screwed end connections

• Pneumatic air valve, reliable and easy

B15 Non-Metallic Pump
More information Data

Specifications

Maximum Delivery: 48 ltrs/min (13 gal/min)

Max. Working Pressure: 8 bar (116 PSI)

Max. Solid Particle Size: 2 mm. (0.08")

Air Inlet: 1/4" NPT

Temperature Limits: Determined by Elastomers

Suction Lift (Dry): 4.6 metres (15.1 feet)

Suction Lift (Wet): 6.1 metres (20 feet)

Fluid Inlet / Outlet: 1/2" ANSI #150 RF Flanged

Installation: Wall or surface mounted; Accessories Included Exhaust Air Silencer

Shipping Weight:
• 5.3 kg. (11.7 lbs) polypropylene / aluminum
• 7 kg. (15.4 lbs) PVDF / aluminum
• 12 kg. (26.5 lbs) polypropylene / stainless steel
• 13.5 kg. (29.8 lbs) PVDF / stainless steel

Shipping Dimensions:
• 320 x 200 x 340 mm
• 12.6" x 7.9" x 13.4"



 Data Sheet
