Metal Marquis inc.

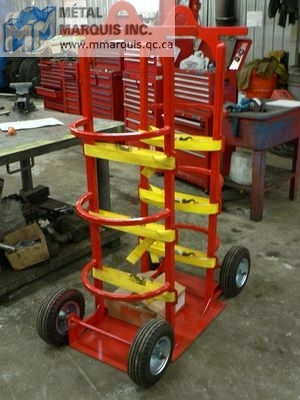

Cylinder Holder
|
–
• The cylinder holder is essential for any work on different levels.
• The holder is adapted to most existing cylinders on the market.
Specification
| WIDTH | 30.5 in |
|---|---|
| DEPTH | 27.75 in |
| WEIGHT OF HOLDER | 57 kg / 125 lbs |
| TOTAL WEIGHT WITH FULL CYLINDER | 198 kg / 435 lbs |
| MAXIMUM CAPACITY | 140 kg / 310 lbs |
| MAXIMUM HEIGHT OF CYLINDER | 60 in |
| MAXIMUM DIAMETER OF CYLINDER | 16.5 in |
| 12 IN WHEELS | yes |
| COMPATIBLE WITH ANY TYPE OF LIFTING DEVICES | yes |
Note: The characteristics and technical data contained in this sheet can be the object of modifications without previous notice.
• Gentle handles facilitate the transportation on ground.
• The 2 in straps with buckles provides an efficient, quick and safe attachement for cylinder.
• The hoops have for purpose to prevent the cylinder to rock over when loading-up.
• The lifting ring provides easy transportation in heights.
