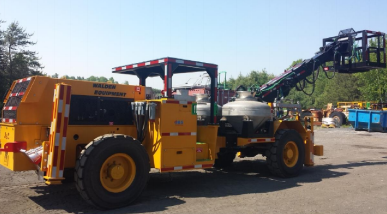

AFX5100
|
Heavy duty frame construction providing a stable platform.
Reliable and proven power train components with integrated torque converter
Four-wheel drive, articulated steer carrier.
FEATURES
Heavy duty frame construction providing a stable platform.
Reliable and proven power train components with integrated torque converter
Four-wheel drive, articulated steer carrier.
Operator and passenger suspension seats (come with seat belts).
Spring applied hydraulic release parking and emergency brakes on both axles.
Front and rear stabilizers
Amber strobe light
BX 3 Section Boom
ENGINE
Mercedes 904
TRANSMISSION
Clark 20,000 Series Power Shift Transmission
AXLES
Dana
TIRES
12:00 x 20 mine rated pneumatic tires
ELECTRICAL
24 volt electrical system
Electric limit switch to prevent movement of the
vehicle when boom is extended
HYDRAULIC SYSTEM
All hoses and fittings with SAE 37 deg
JIC Aeroquip
Selector valve to eliminate vehicle movement while
Baskets is in use
EQUIPPED WITH
• ROPS/FOPS Canopy
• 250, 500, and 750 kg Anfo Loading Tank
• Stainless Steel Plumbing for ANFO System
• Air Compressor
• Intrinsically Safe Electrical Panels
AVAILABLE OPTIONS
• Mercedes 906 engine.
• Air conditioners and heaters for cabs
• Wing filled or solid tires
• Elec. / Hyd. power pack (reel only)
• Dual loading system
• 1000kg ANFO upgrade
• Fire suppression system 4 Nozzle
• Check fire system - 8 nozzles and two 30lbs tank
• Canopy over basket
• Hydraulic compressor
• Auto greasing system
• Enclosed cab with A/C
• Secondary ANFO transportation day boxes
• Secondary ANFO transportation day boxes
