CD400M Dri-Prime Pumps

Godwin’s CD400M Dri-Prime is an 18" x 16" (450mm x 400mm) centrifugal trash pump perfect for your biggest jobs. Offering flows to 10,000 gallons per minute (631 l/sec.), discharge heads to 150' (46M), and solids handling to 5" (125mm) in diameter, the CD400M moves large volumes of water and provides the ease of automatic priming to 28 feet (8.5M). For intermittent flows, the double high pressure mechanical seal means the CD400M can run dry indefinitely without damage. And the underslung discharge flange makes pump connections easy and efficient. When your job calls for both high volume and high head, the Godwin CD400M is the pump that does it all.


Technology Data

Weight 13,500 lbs. (6,124 kg.)

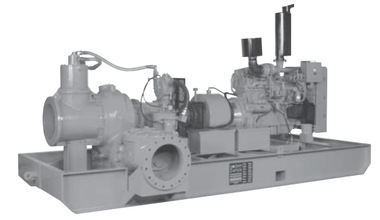

Dimensions CD400M — shown with Caterpillar Engine, Skid Base

 Open full description in this PDF.


• Direct drive automatic priming 18" x 16" (450mm x 400mm) high volume centrifugal pump with vacuum priming system mounted to the pump unit. Also available in electric drive or as bare shaft pumpend.

• Extensive application flexibility — handles raw sewage, sludges and liquids with solids up to 5" (125mm) in diameter.

• Underslung side discharge for easy pipe connection.

• Double, high pressure mechanical seal with high abrasion resistant silicon carbide interfaces. Oil bath immersion for dry running.

• Skid base mount incorporates forklift pockets and four point lifting eyes for versatility in handling.

• Simple maintenance — normally limited to checking engine oil, vacuum pump oil and seal lubrication.

• Standard Caterpillar C-9 engine. Also available with a variety of other engines including John Deere, Cummins and Deutz.

• Integral 10 gallon service fuel tank, plus convenient connections for attaching to auxiliary fuel cell.
