Walden Group

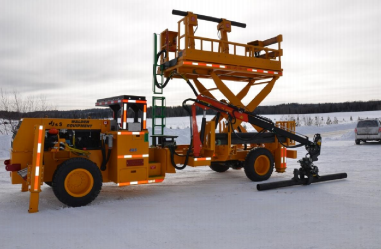

SLX-PH 5100
|
Heavy duty frame construction providing a stable platform.
Reliable and proven power train components with integrated torque converter
Four-wheel drive, articulated steer carrier.
FEATURES
• Heavy duty frame construction providing a stable platform.
• Reliable and proven power train components with integrated torque converter
• Four-wheel drive, articulated steer carrier.
• Operator and passenger suspension seats (come with seat belts).
• Spring applied hydraulic release parking and emergency brakes on both axles.
• Front and rear stabilizers
• Amber strobe light
• Palfinger Boom
ENGINE
Mecedes 904
TRANSMISSION
Clark 20,000 Series Power Shift Transmission
AXLES
Dana
TIRES
12:00 x 20 mine rated pneumatic tires
ELECTRICAL
24 volt electrical system
Electric limit switch to prevent movement of the vehicle when boom is extended
HYDRAULIC SYSTEM
All hoses and fittings with SAE 37 deg
JIC Aeroquip
DECK
6 ft. X 12 ft. deck
24 inch side shift (working side only)
4000 lbs. lift capacity
Air over hydraulic power pack
BOOM AND HANDLER
Clamping capacity: 4” to 11.5” round pipe
Maximum load capacity – 1000 lbs.
Pipe manipulator weight – 435 lbs.
Removable boom tip for easy transition from crane hook to manipulator head
Forward tilt 45º
Backward tilt 25º
Rotates 360º
Palfinger boom with radio remote control for enhanced operation & safety
EQUIPPED WITH
• ROPS/FOPS canopy
AVAILABLE OPTIONS
• Mercedes 906 / Cat / Cummins engines
• Air conditioners and heaters for cabs
• Wing filled or solid tires
• Check fire system which includes 8 nozzles and two 30lbs tank
• Auto greasing system
• Enclosed cab with A/C
• Dana 113 axles
