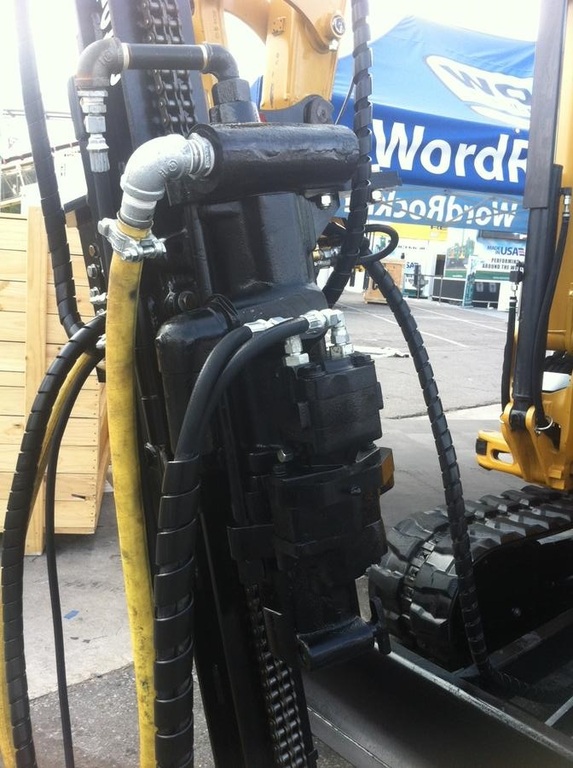

VL120 Pneumatic Percussion Drill

Product Features

• Net Weight (Less Striking Bar): 365 lb. (166 kg)

• Overall Length (Less Striking Bar): 40" (1,016 mm)

• Bore of Cylinder: 4.75" (120mm)

• Stroke: 3" (76mm)

• Blow Frequency @100 psi (690kPa): 2,000bpm

• Rotation Speed at Chuck @100 psi (690 kPa): 150 rpm

Product Specifications

• Hole size: 1-3/4" - 3"

• Type of Drilling: Blasting, Mining, Roof Bolting

• Flushing: Air/ Water/ Mist

• CFM Required: 375 - 600

• Hydraulic Flow: N/A

• Hydraulic Pressure: N/A

VL120 Pneumatic Percussion Drill

Model: VL120
New / Used: New
Manufacturer: WORD
Application: Blasting, Drilling, Mining, Roof Bolting

• Ideal for blasting work for holes 3" and under

• Pneumatic rotation used for normal blasting work on airtracks or pneumatic feeds

• Proven to drill up to 19 m/hr in limestone with a 3" drill bit

• All parts equivalent to IR VL120 drifter and are in stock for sale
