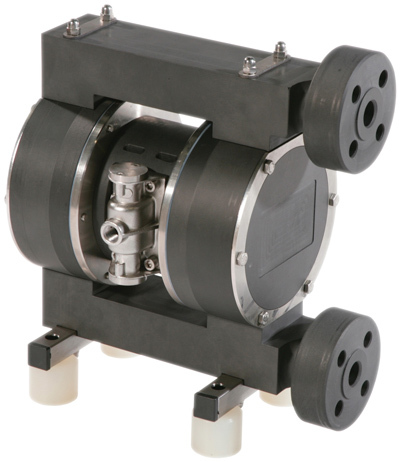

B15 PFTE Pump from Blagdon Pump
|
• Simple construction, easy to maintain
• Available in virgin and conductive PTFE
• Chemically inert
• Flanged end connections
• ATEX approved - intrinsically safe
• Reliable, proven pneumatic air valve
• Strong, robust design
Specifications
Maximum Delivery: 48 ltrs/min (13 gal/min)
Max. Working Pressure: 7 bar (102 PSI)
Max. Solid Particle Size: 2 mm. (0.08")
Air Inlet: 1/4" NPT
Temperature Limits: Determined by Elastomers
Suction Lift (Dry): 4.6 metres (15.1 feet)
Suction Lift (Wet): 6.1 metres (20 feet)
Fluid Inlet / Outlet: 1/2" BSP / NPT
Installation: Wall or surface mounted
Accessories Included: Exhaust Air Silencer
Shipping Weight: 16 kg. (35.3 lbs) Conductive PTFE; 16 kg. (35.3 lbs) Virgin PTFE
Shipping Dimensions: 320 x 200 x 340 mm, 12.6" x 7.9" x 13.4"
-
