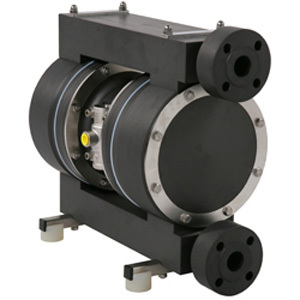

B25 PFTE Pump from Blagdon Pump
|
• Simple construction, easy to maintain
• Available in virgin and conductive PTFE
• Chemically inert
• Flanged end connections
• ATEX approved - intrinsically safe
• Reliable, proven pneumatic air valve
• Strong, robust design
Specifications
Maximum Delivery: 136 ltrs/min (36 gal/min)
Max. Working Pressure: 7 bar (102 PSI)
Max. Solid Particle Size: 3 mm. (0.12")
Air Inlet: 3/8" NPT
Temperature Limits: Determined by Elastomers
Suction Lift (Dry): 6.1 metres (20 feet)
Suction Lift (Wet): 7.6 metres (24.9 feet)
Fluid Inlet / Outlet: 1" BSP / ANSI #150 Flange
Installation: Wall or surface mounted
Accessories Included: Exhaust Air Silencer
Shipping Weights: 40 kg. (88.2 lbs) Conductive PTFE; 37 kg. (81.6 lbs) Virgin PTFE
Shipping Dimensions: 500 x 300 x 450 mm, 19.7" x 11.8" x 17.7"
